Circuit Schematic

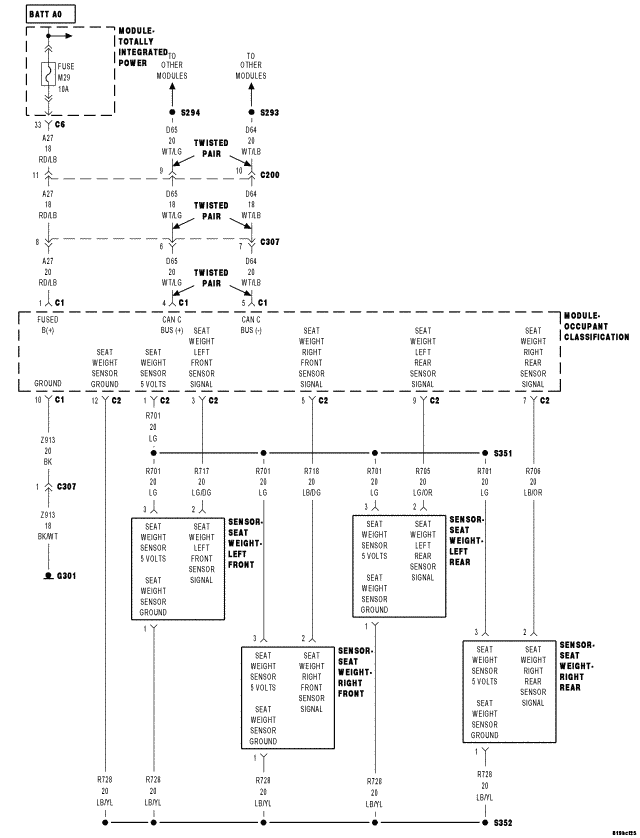

Fig 1: Occupant Classification Module Circuit Schematic
GC0061831Courtesy of CHRYSLER LLC
