Sensor-Fuel Level Sending Unit

WARNING: This page is about a different car, the 2007 Dodge Nitro. However, it is still accessible from the selected car via links, so may be relevant.

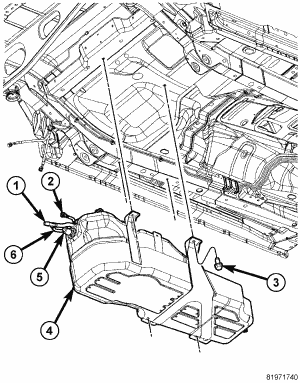

Fig 1: Removing/Installing Fuel Tank
GC0062722Courtesy of CHRYSLER LLC
  1. Drain and remove fuel tank (4). Refer to REMOVAL  .
  2. Remove the fuel pump module. See REMOVAL .
  3. Remove the fuel level sending unit.
