Wrangler X, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTCS P0203 To P0420
>>
P0401-EGR System Performance
>>
Circuit Schematic
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Schematic

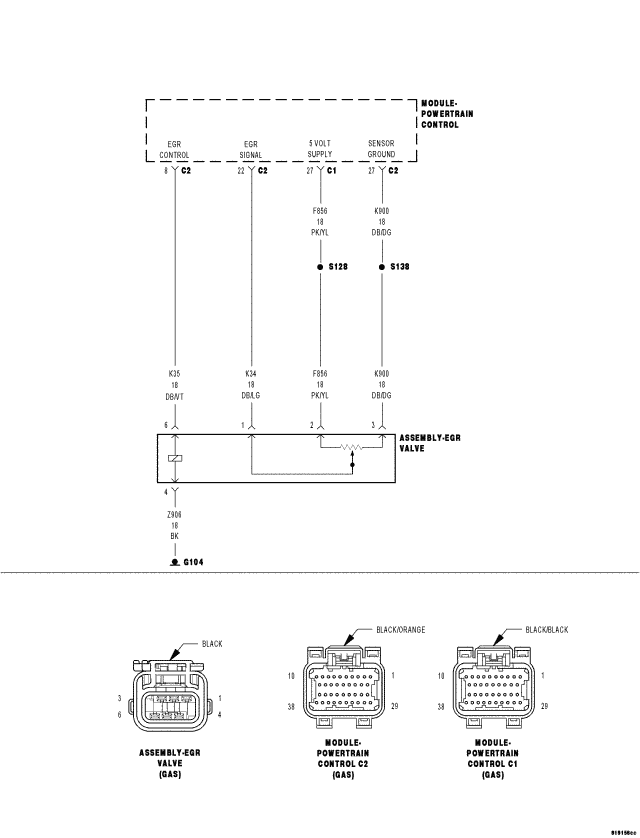

Fig 1: EGR Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
