Removal

REMOVAL

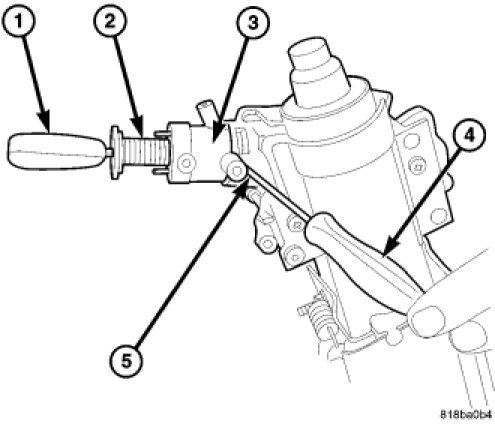

The ignition key (1) must be in the key cylinder (2) for cylinder removal. The key cylinder must be removed first before removing ignition switch.

1. If equipped with an automatic transmission, place shifter in PARK position.
2. Remove the lower shroud cover.
3. Remove the remote keyless entry (R.K.E.) module.
4. Remove the halo ring around the cylinder.
5. Rotate key to ON position.
6. A release tang is located on bottom of key cylinder (5).
7. Position a small screwdriver or pin punch (4) into tang access hole (5).
8. Push the pin punch (5) up while pulling key cylinder (2) from steering column (3).
