Crossmember - Installation






INSTALLATION

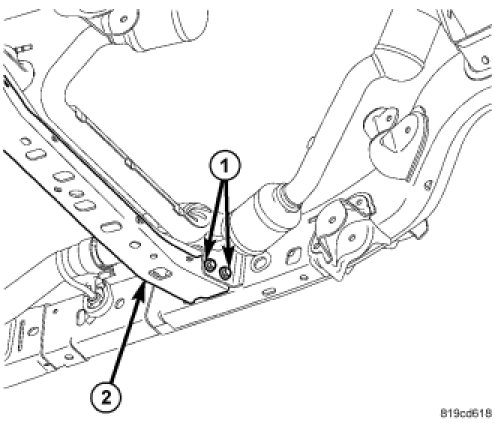

1. Install the crossmember (2) and install the bolts (1).

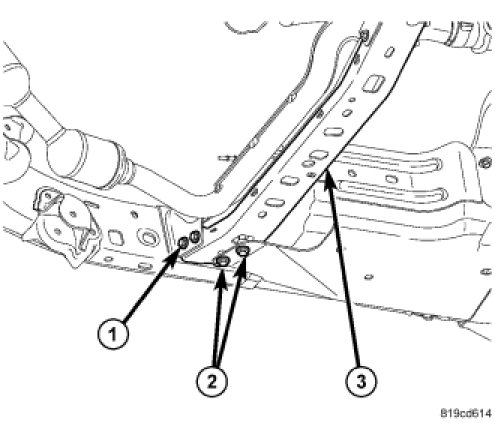

2. Install the right side bolts (1) and tighten all four crossmember bolts to 122 Nm (90 ft. lbs.).

3. Install the fuel tank skid plate bolts (2) and tighten to 99 Nm (73 ft. lbs.).

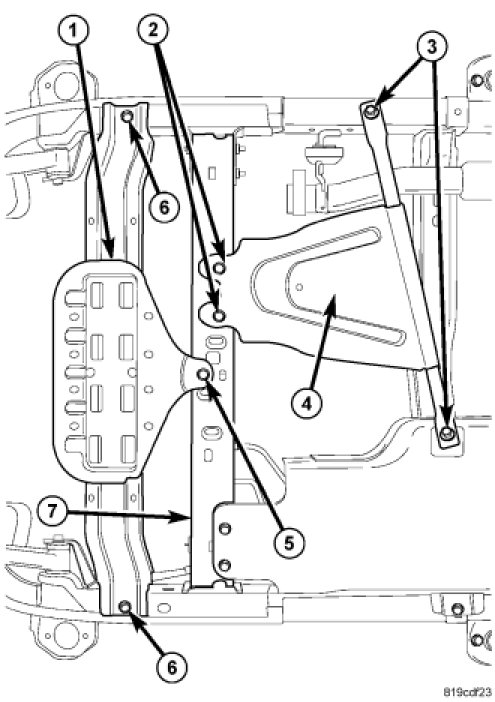

4. Install the transmission skid plate (1).

5. Install the transfer case skid plate (4).
