Installation






INSTALLATION

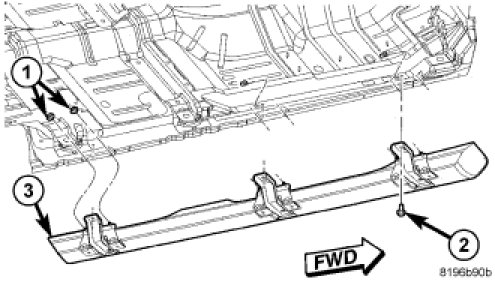

1. Position the side step studs through the holes in the body side flange.

2. Install the nuts (1) and tighten to 12 Nm (9 ft. lbs.).

3. Install the bolts (2) and tighten to 24 Nm (18 ft. lbs.)
