Circuit Schematic

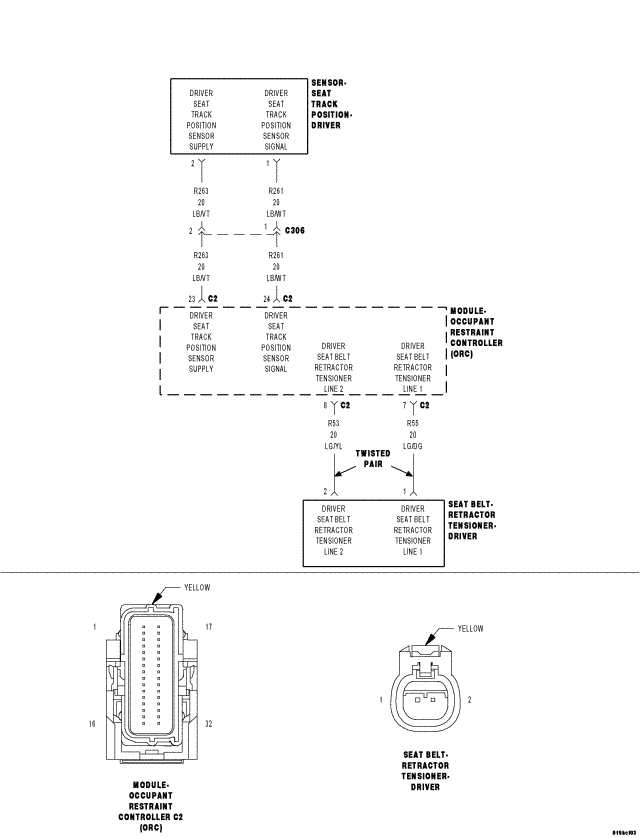

Fig 1: Driver Seat Track Position Sensor Circuit Schematic

GC0061825

Courtesy of CHRYSLER LLC
