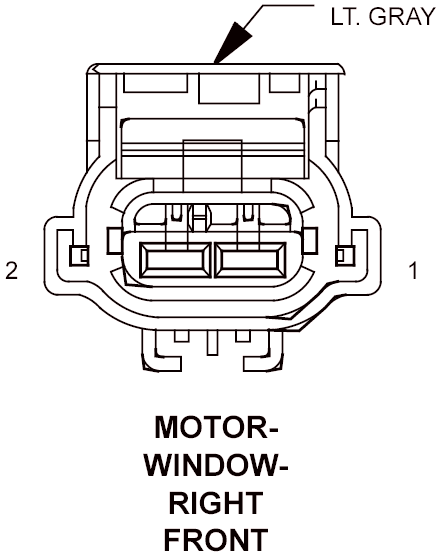

Right Front Window Motor Connector End View
MOTOR-WINDOW-RIGHT FRONT - LT. GRAY 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Q22 14VT/WT
RIGHT FRONT WINDOW DRIVER (DOWN)
2
Q12 14BR/LB
RIGHT FRONT WINDOW DRIVER (UP)
Courtesy of CHRYSLER CORP.
