DTCS P0112 To P0155 - Gas
>>
P0137-O2 Sensor 1/2 Circuit Low
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

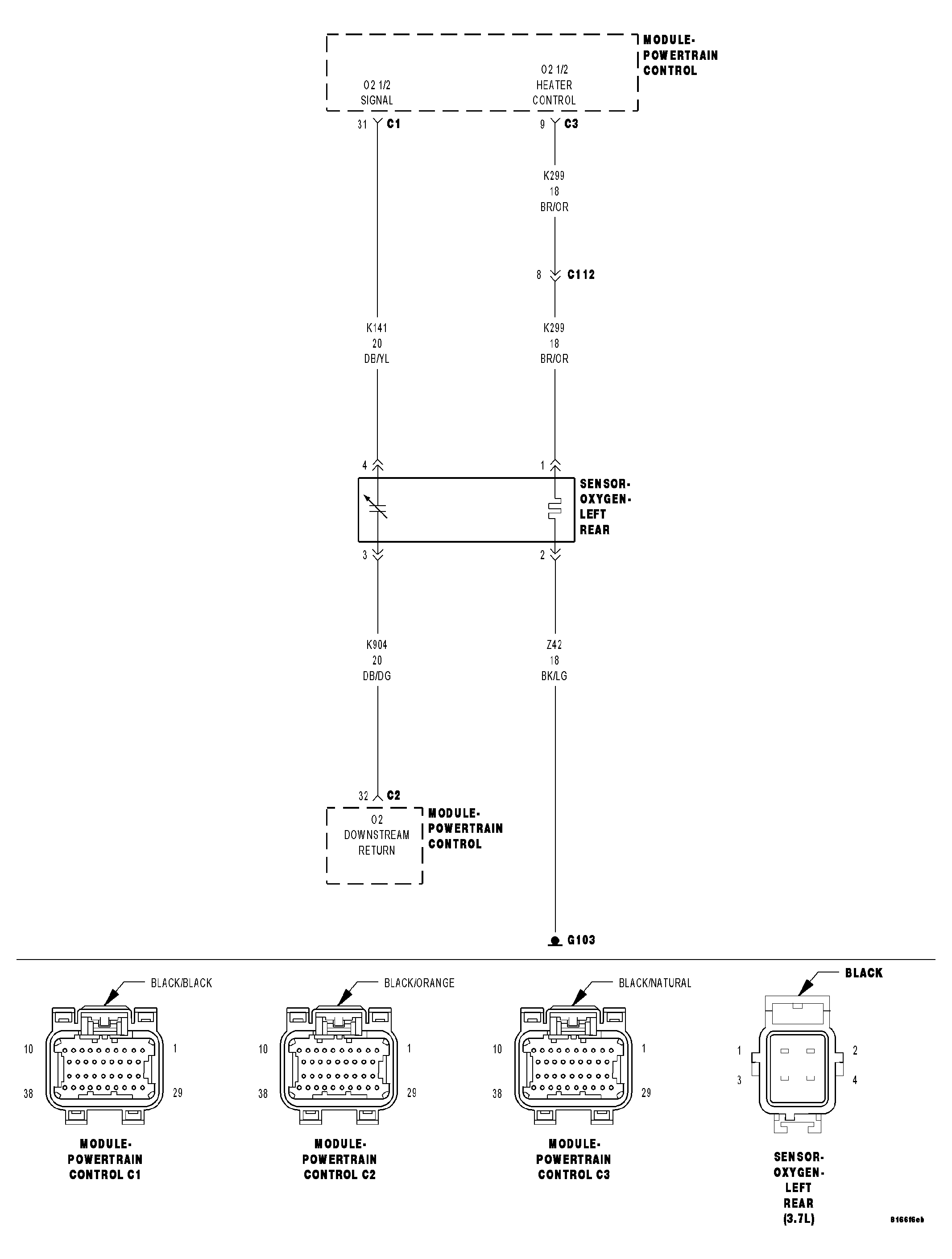

Fig 1: Left Rear O2 Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
