Jeep
>>
2007
>>
Liberty Limited, 4WD, Part Time
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTCS P0325 To P0501 - Gas
>>
P0401-EGR System Performance
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

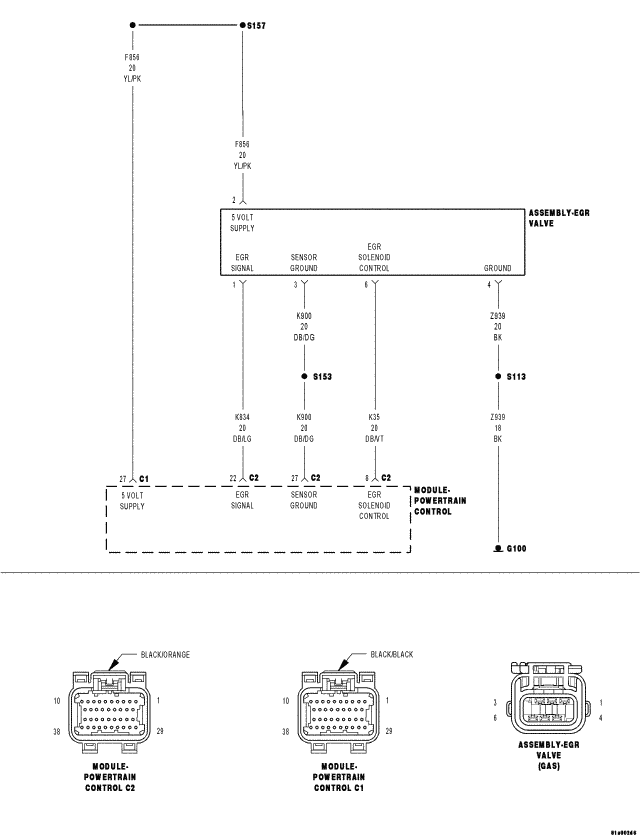

Fig 1: EGR Valve Circuit Schematic
Courtesy of CHRYSLER LLC
