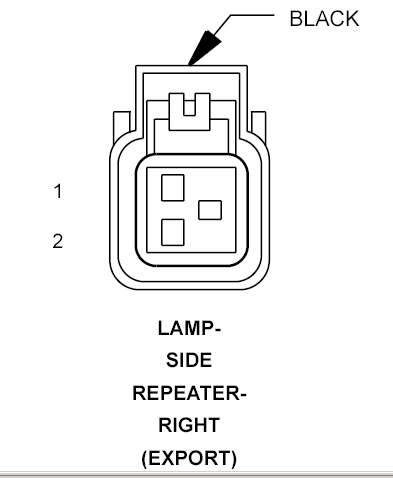

Right Side Repeater Lamp (Export) Connector End View
LAMP-SIDE REPEATER-RIGHT - BLACK 2 WAY (EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L160 20WT/TN |
RIGHT TURN SIGNAL (OUT) |
| 2 |
Z908 20BK/PK |
GROUND |
