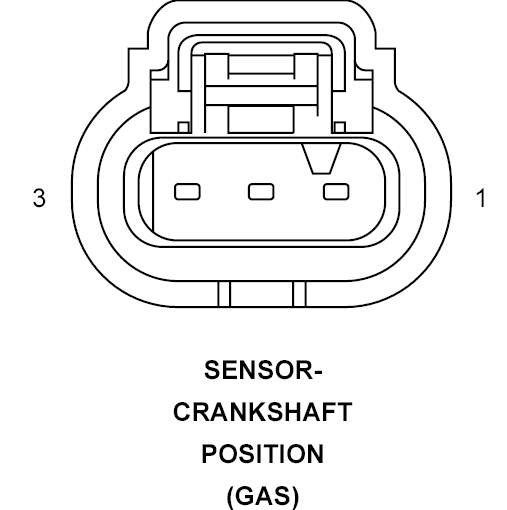

Crankshaft Position Sensor (Gas) Connector End View
SENSOR-CRANKSHAFT POSITION - 3 WAY (GAS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F855 20PK/YL |
5 VOLT SUPPLY |
| 2 |
K900 20DB/DG |
SENSOR GROUND |
| 3 |
K24 20LB/BR |
CKP SIGNAL |
