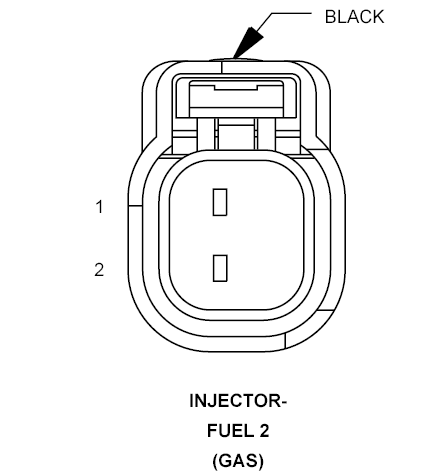

Fuel Injector 2 (Gas) Connector End View
INJECTOR-FUEL 2 - BLACK 2 WAY (GAS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K12 20BR/DB |
INJECTOR 2 CONTROL |
| 2 |
F343 20DB/LG |
FUSED MAIN RELAY OUTPUT |
