T355 Manual Transaxle






TORQUE

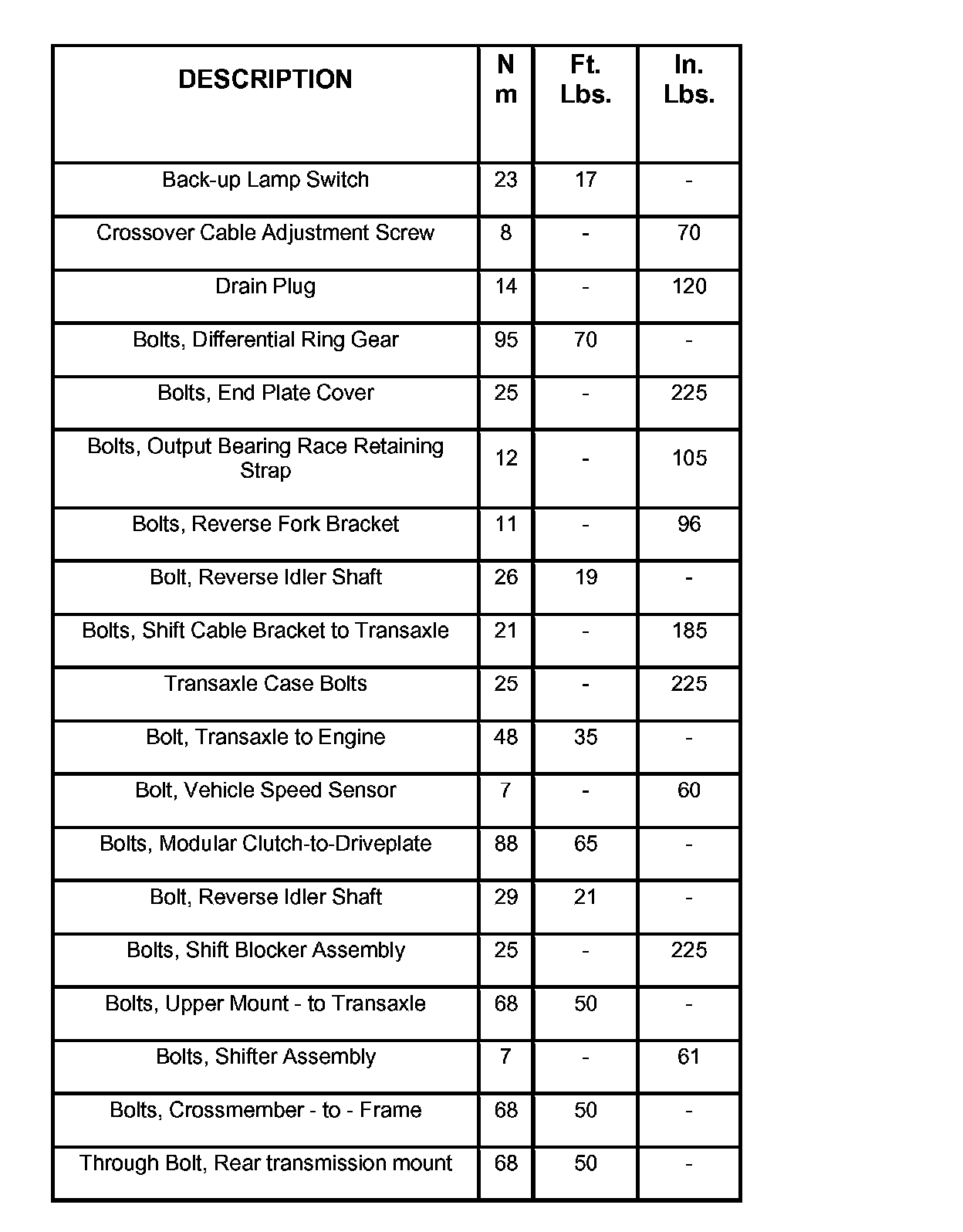

Torque Specifications:






Bolts that have thread sealer or torque lock patches should not be reused. Always install new bolts in these applications.
