Ambient Temperature Sensor / Switch HVAC

Component ID: 291
Component : SENSOR-AMBIENT AIR TEMPERATURE

Connector:
Name : SENSOR-AMBIENT AIR TEMPERATURE
Color : BLACK
# of pins : 2




Pin Description Circuit
1 AAT SIGNAL G31 20VT/LG
2 AAT RETURN G931 20VT/DB

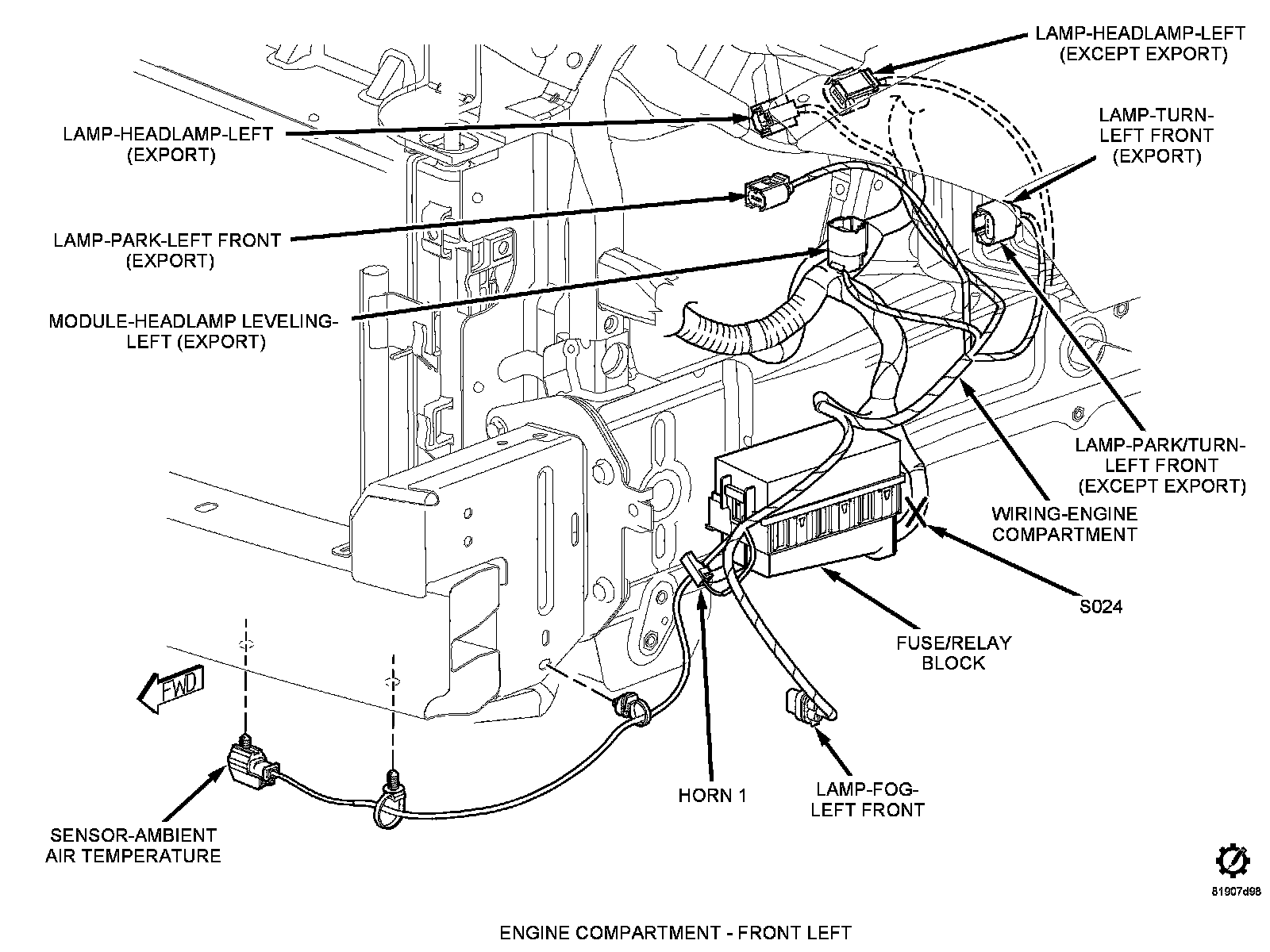

Component Location - 10
