Circuit Schematic

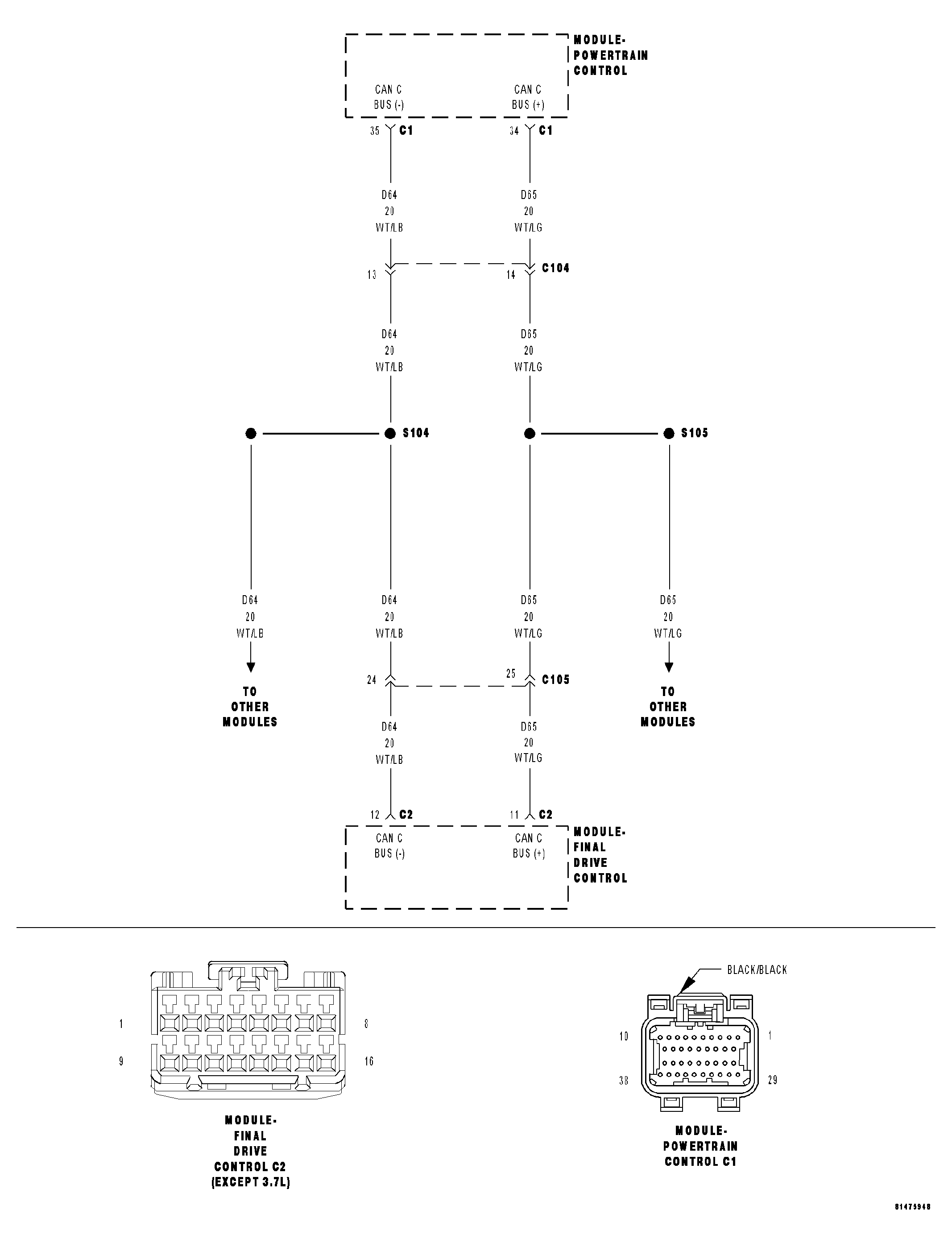

Fig 1: Final Drive Control Module CAN C BUS Circuit Schematic
GC0027226Courtesy of CHRYSLER LLC
