Circuit Schematic

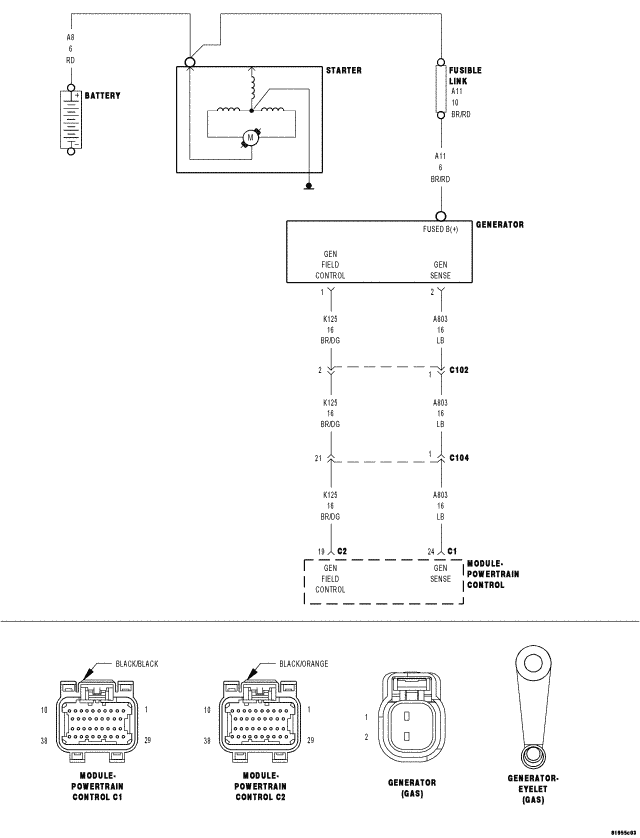

Fig 1: Generator Field Control Circuit Schematic
GC0065148Courtesy of CHRYSLER LLC
