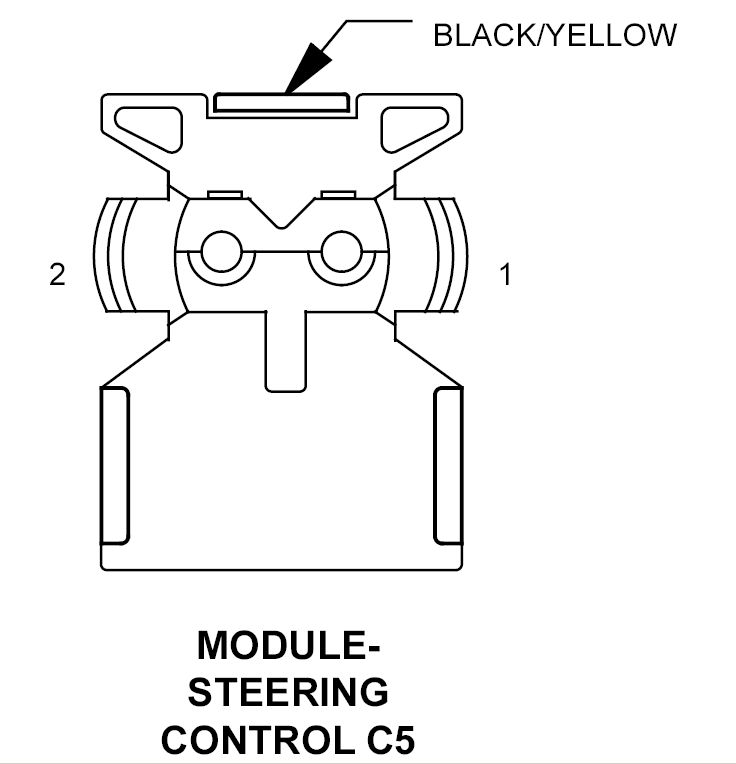

Steering Control Module Connector End View (C5)
MODULE-STEERING CONTROL C5 - BLACK/YELLOW 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R345 20LG/OR |
DRIVER SQUIB 1 LINE 1 |
| 2 |
R343 20LG/BR |
DRIVER SQUIB 1 LINE 2 |
