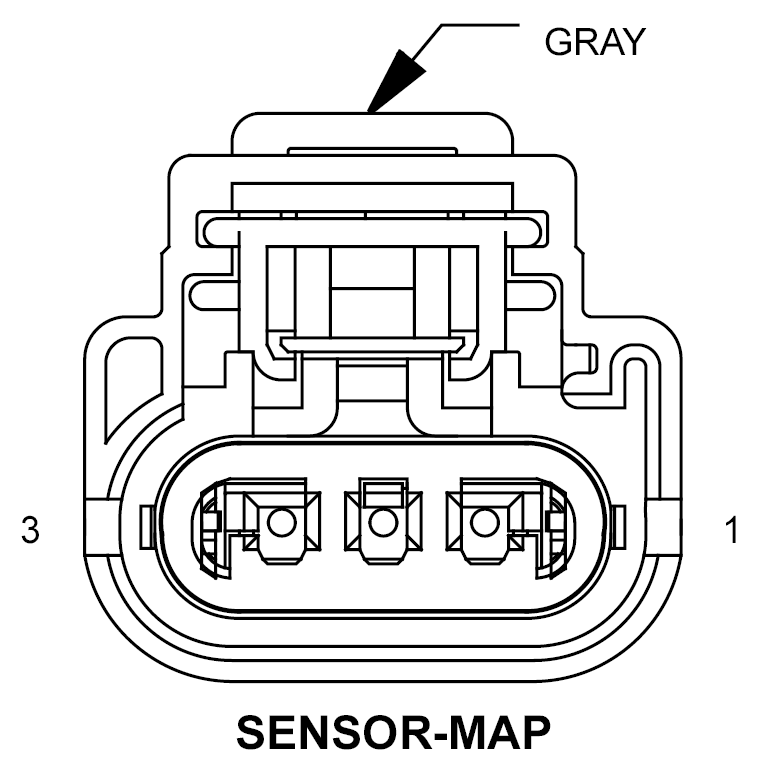

Map Sensor Connector End View
SENSOR-MAP - GRAY 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K1 20VT/BR |
MAP SIGNAL |
| 2 |
K900 20DB/DG |
SENSOR GROUND |
| 3 |
F856 20YL/PK |
5 VOLT SUPPLY |
