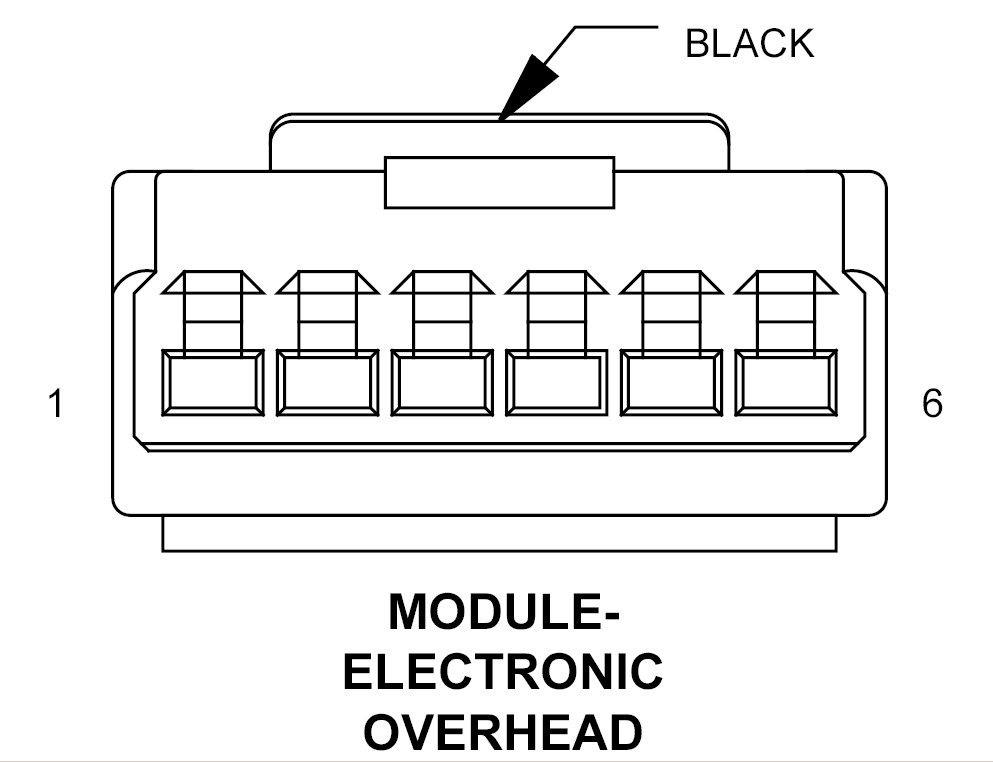

Electronic Overhead Module Connector End View
MODULE-ELECTRONIC OVERHEAD - BLACK 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
- |
- |
| 3 |
Z915 20BK |
GROUND |
| 4 |
A114 20GY/RD |
FUSED B(+) |
| 5 |
D500 20WT |
LIN BUS |
| 6 |
- |
- |
