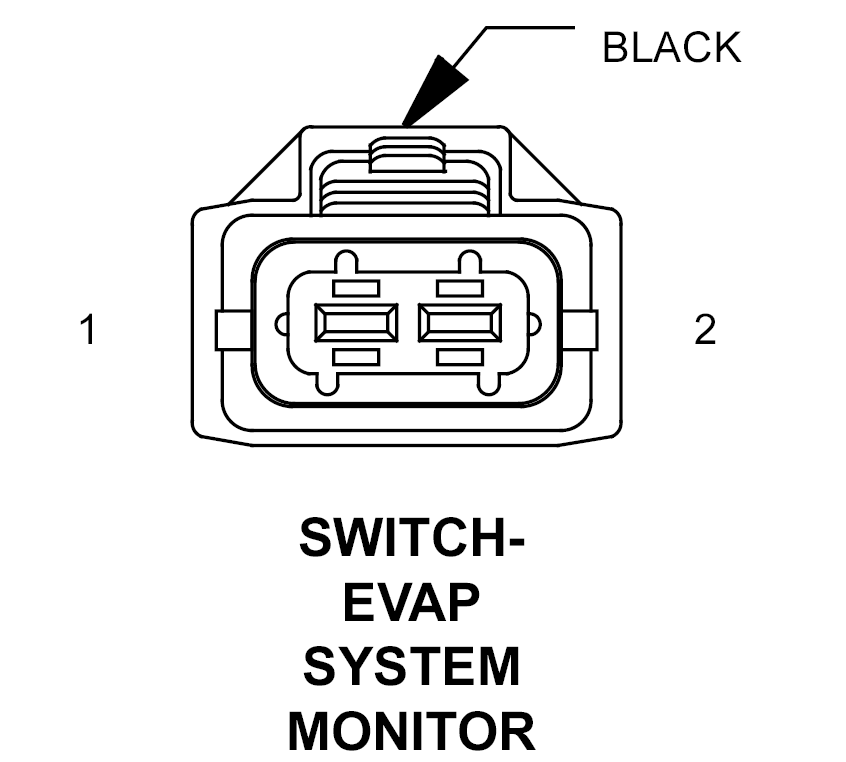

EVAP System Monitor Switch Connector End View
SWITCH-EVAP SYSTEM MONITOR - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z912 18BK |
GROUND |
| 2 |
K107 20BR/LB |
ESM SIGNAL |
