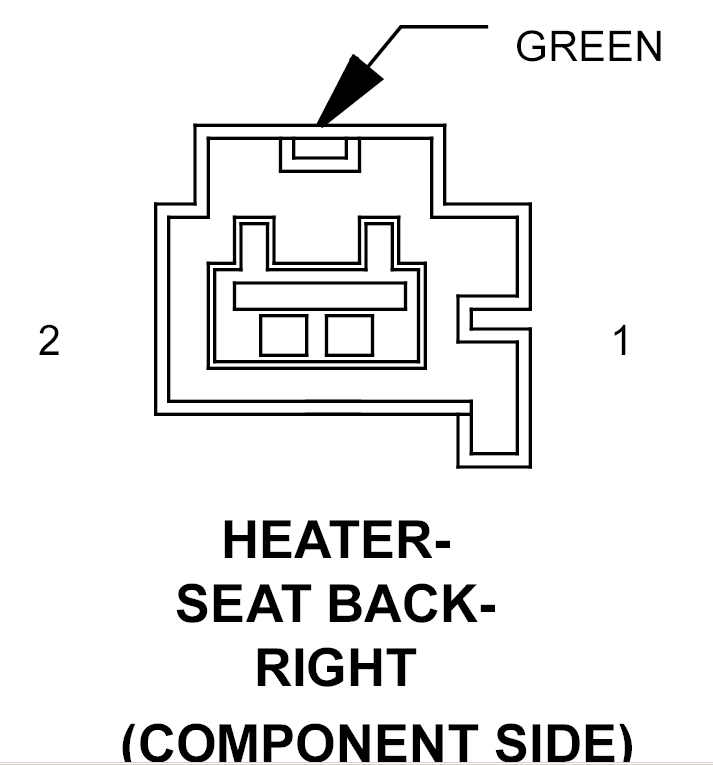

Right Seat Back Component Side Heater Connector End View
HEATER-SEAT BACK-RIGHT - GREEN 2-WAY(COMPONENT SIDE)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
18BK |
GROUND |
| 2 |
18LG/RD |
RIGHT SEAT HEATER B(+) DRIVER |
