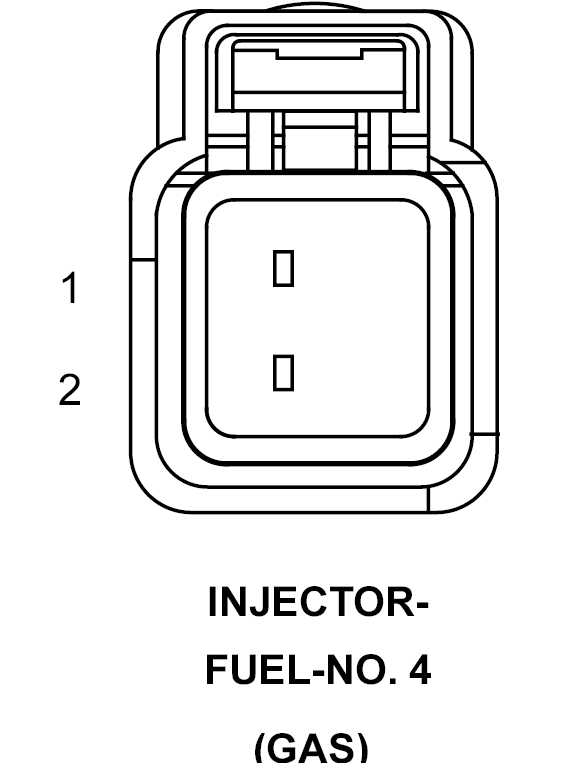

Fuel Injector 4 (Gas) Connector End View
INJECTOR-FUEL-NO. 4 - 2-WAY(GAS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K14 16BR/TN |
INJECTOR CONTROL NO. 4 |
| 2 |
F42 16DG/LG |
FUSED ASD RELAY OUTPUT |
