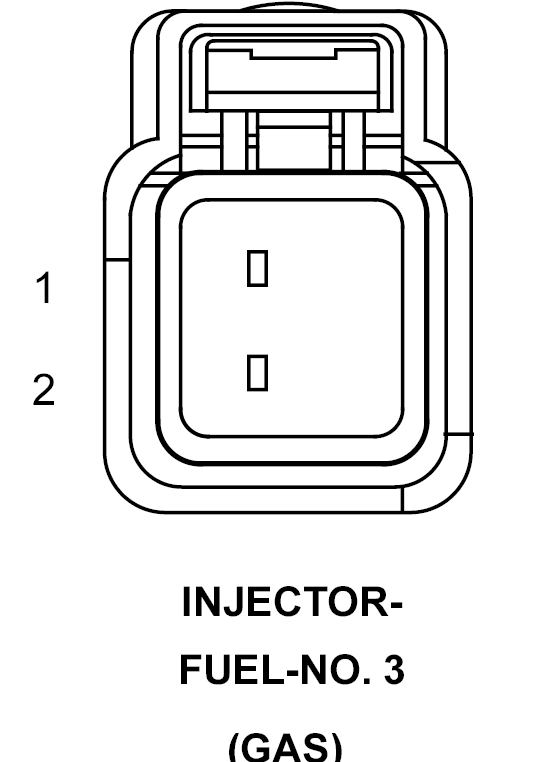

Fuel Injector 3 (Gas) Connector End View
INJECTOR-FUEL-NO. 3 - 2-WAY(GAS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K13 16BR/LB |
INJECTOR CONTROL NO. 3 |
| 2 |
F42 16DG/LG |
FUSED ASD RELAY OUTPUT |
