Left Front

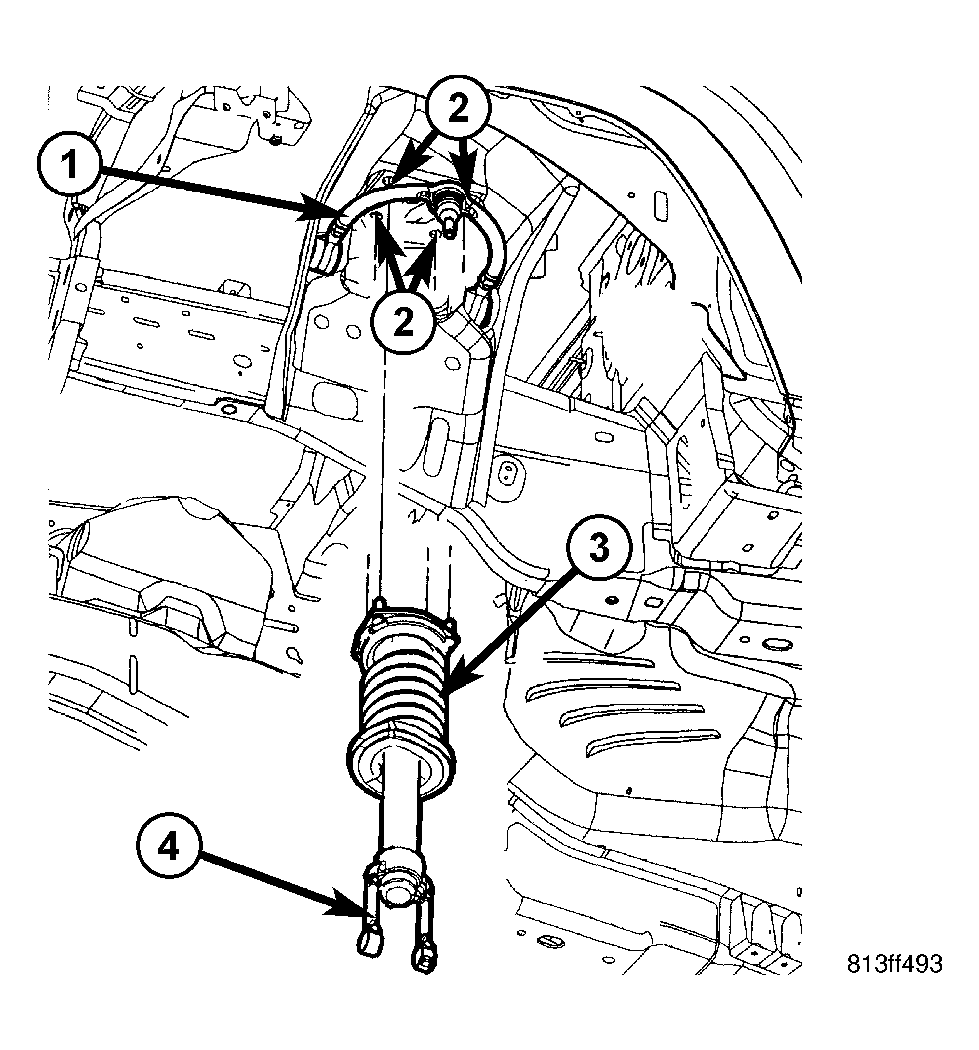

Courtesy of CHRYSLER LLC
| 1 - UPPER CONTROL ARM |
| 2 - MOUNTING HOLES |
| 3 - SHOCK ASSEMBLY |
| 4 - CLEVIS BRACKET |
- Install the clevis bracket (4) to the shock (3) and tighten to 122 N.m (90 ft. lbs.).
- Install the shock assembly (3) to the vehicle.

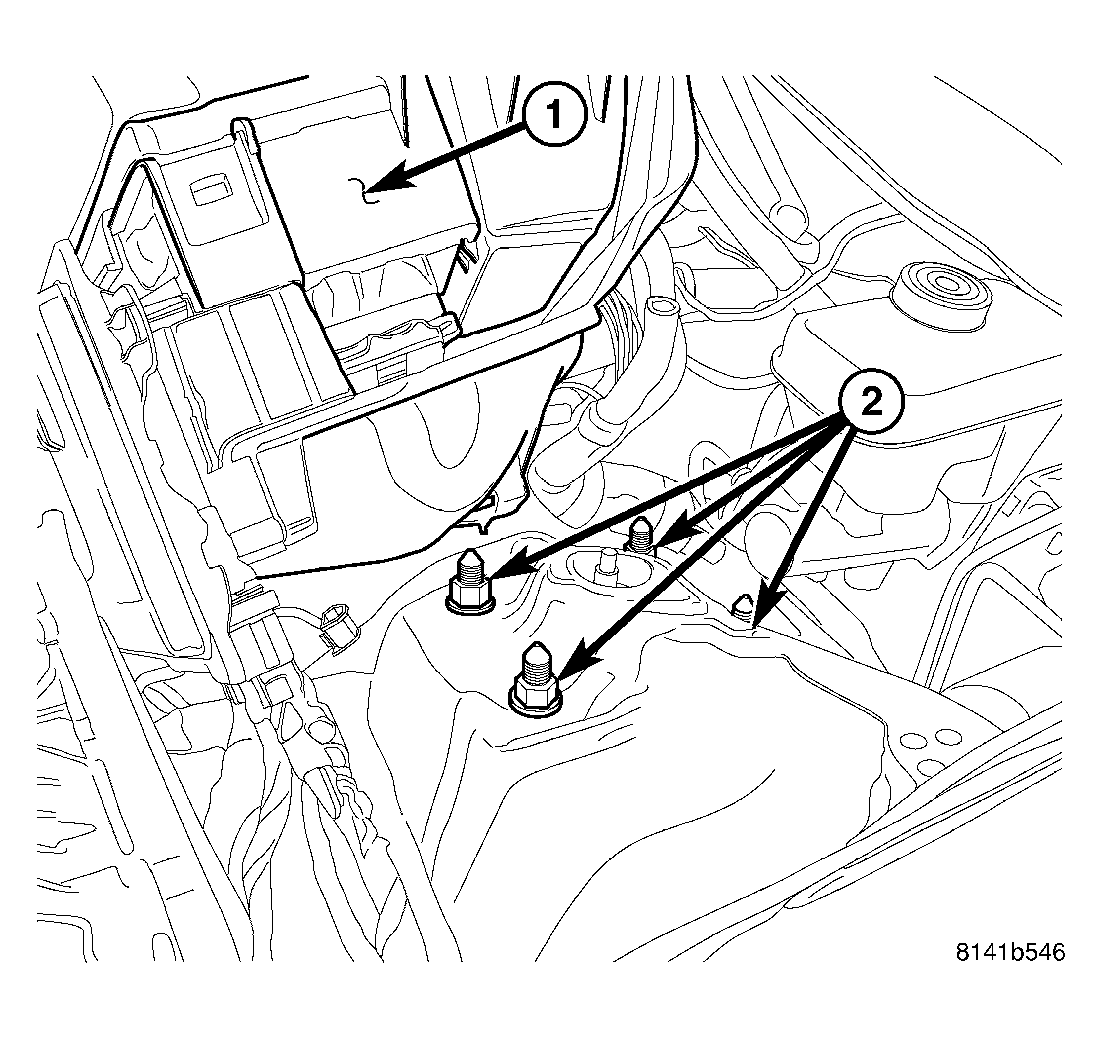

Courtesy of CHRYSLER LLC
| 1 - PDC |
| 2 - UPPER MOUNTING NUTS |
- Install the four upper shock nuts (2), Tighten to 95 N.m (70 ft. lbs.).

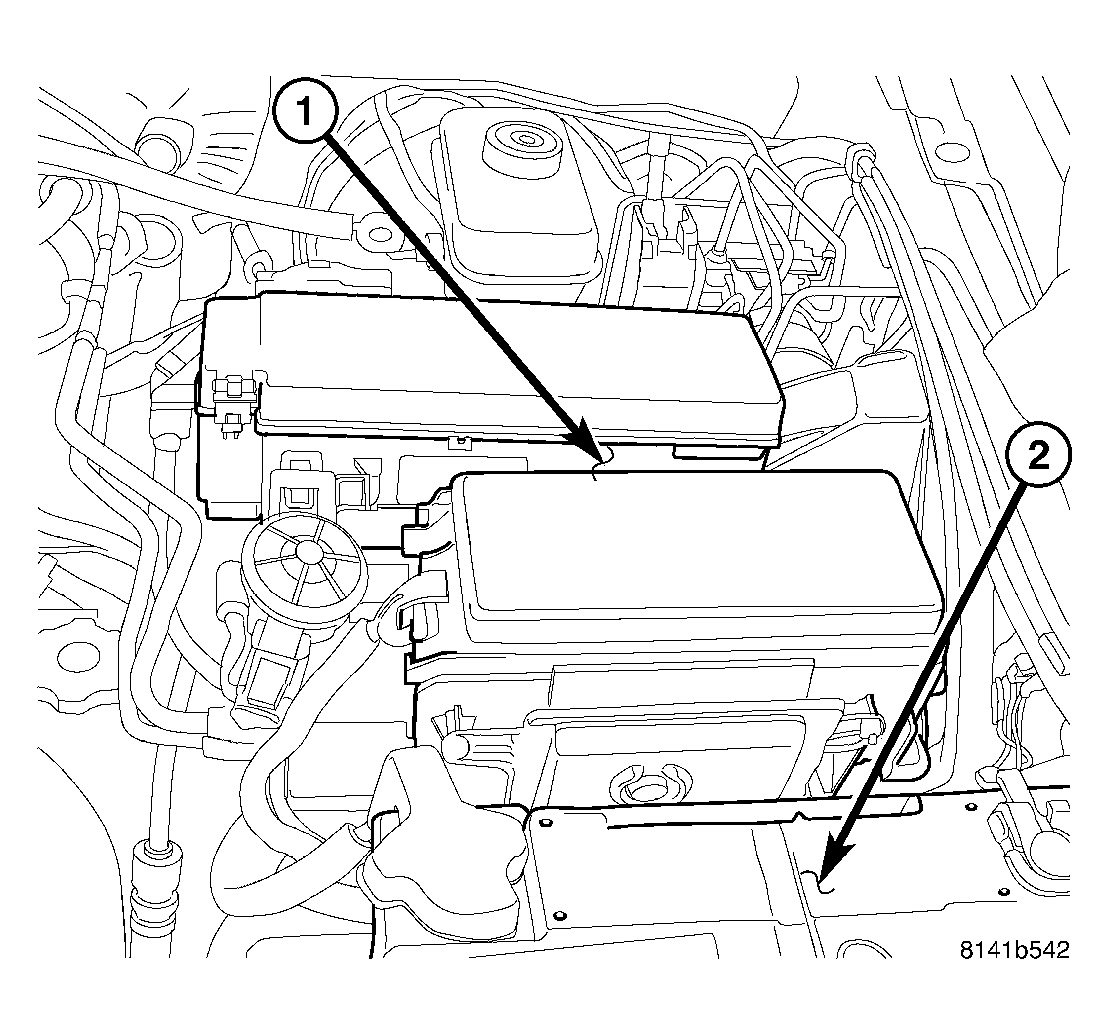

Courtesy of CHRYSLER LLC
| 1 - POWER DISTRIBUTION CENTER |
| 2 - BATTERY |
- Install the 3 PDC (1) bracket nuts.

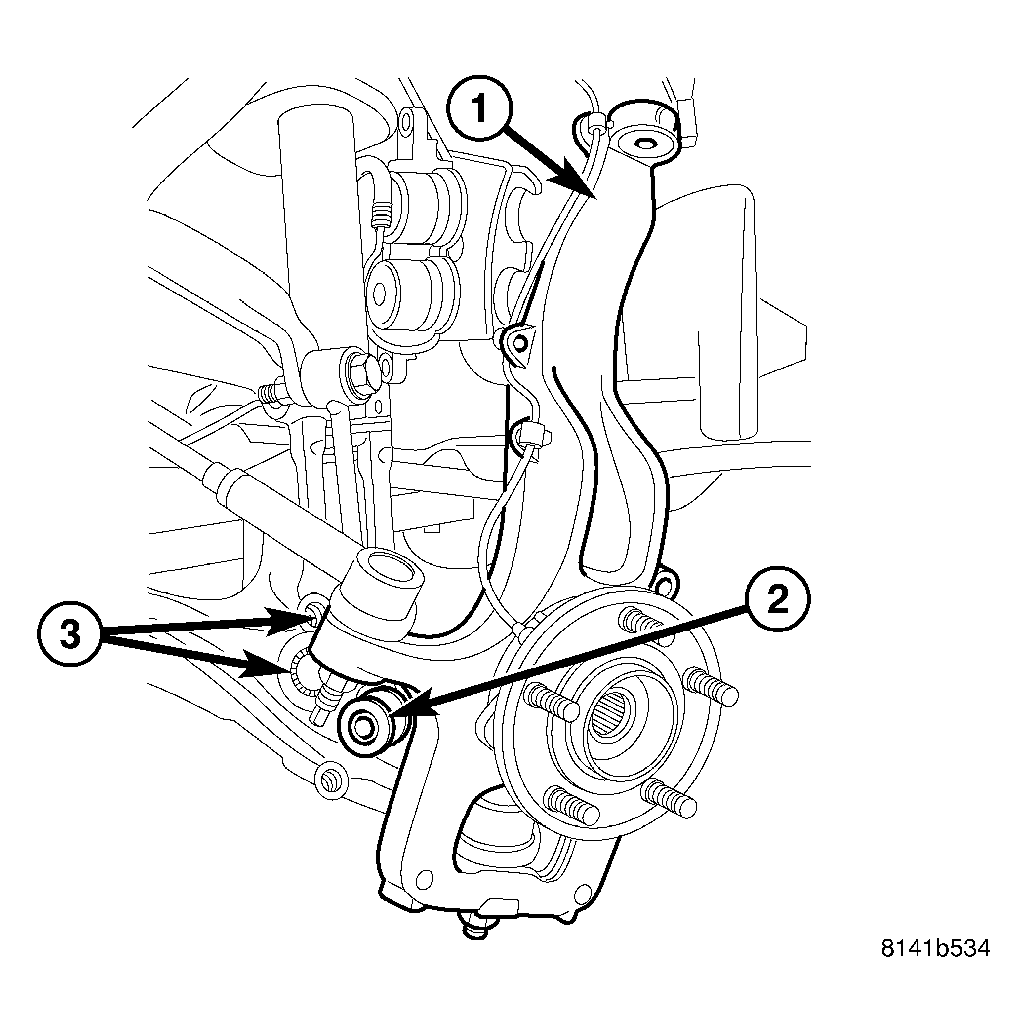

Courtesy of CHRYSLER LLC
| 1 - KNUCKLE |
| 2 - CLEVIS BRACKET AND BUSHING |
| 3 - STABILIZER LINK |
- Raise the vehicle up.
- Install the lower stabilizer bolt (3) at the lower control arm and tighten to 115 N.m (85 ft. lbs.).
- Install the lower clevis bolt (2) at the lower control arm and tighten to 169 N.m (125 ft. lbs.).
- Install the upper ball joint into the knuckle (1) and tighten the nut to 75 N.m (55 ft. lbs.).
- Install the disc brake rotor.
- Install the caliper adaptor mounting bolts to 176 N.m (130 ft. lbs.).
- Install the tire and wheel assembly.
- Lower the vehicle.
