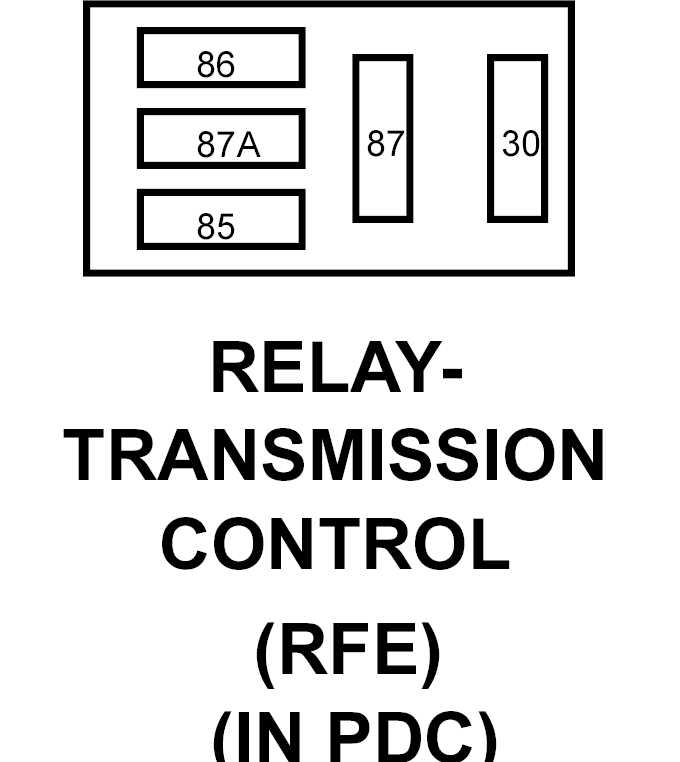

Transmission Control Relay (RFE) Connector End View
RELAY-TRANSMISSION CONTROL - 0-WAY(RFE)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A917 18RD/DG |
FUSED B(+) |
| 85 |
Z387 20BK |
GROUND |
| 86 |
T15 20YL/BR |
TRANSMISSION CONTROL RELAY CONTROL |
| 87 |
T16 16YL/OR |
TRANSMISSION CONTROL RELAY OUTPUT |
| 87A |
- |
- |
