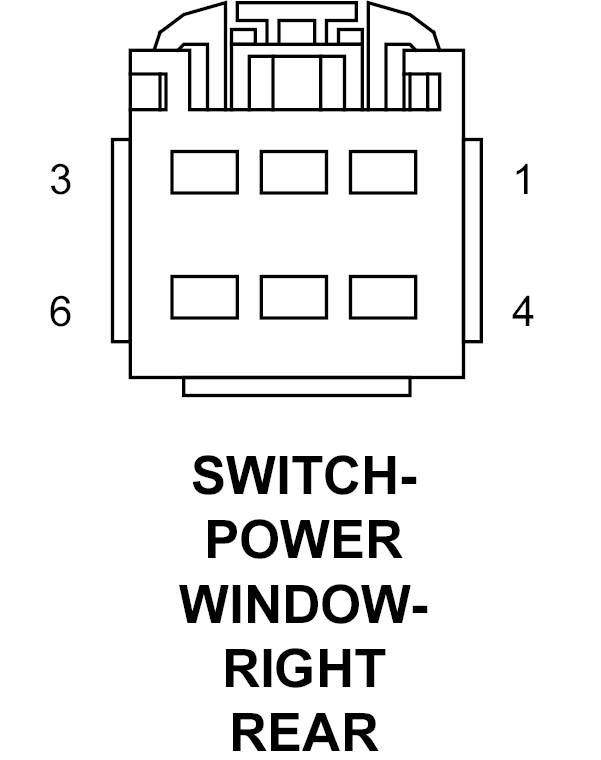

Right Rear Power Window Switch Connector End View

SWITCH-POWER WINDOW-RIGHT REAR - 6-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Q612 16OR/DB	MASTER WINDOW SWITCH RIGHT REAR (DOWN)
2	Q212 16OR/VT	RIGHT REAR WINDOW DRIVER (DOWN)
3	Q112 16OR/BR	RIGHT REAR WINDOW DRIVER (UP)
4	Q412 16OR/LB	MASTER WINDOW SWITCH RIGHT REAR (UP)
5	-	-
6	Q15 16OR/LB	WINDOW LOCK OUT SWITCH OUTPUT
