Rear Differential Solenoid Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Rear Differential Solenoid Connector End View

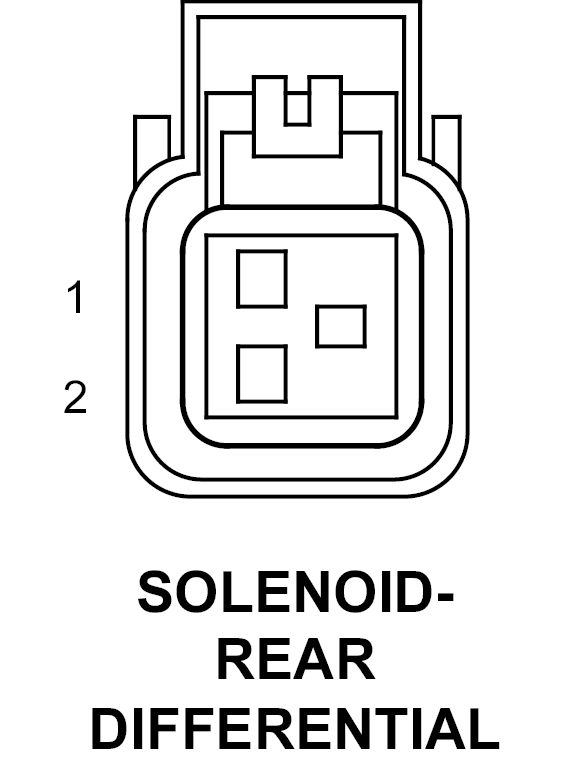

SOLENOID-REAR DIFFERENTIAL - 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
T301 18DG/YL
SWITCHED BATTERY SOLENOID SUPPLY
2
T312 18YL/VT
REAR DIFFERENTIAL SOLENOID CONTROL
Courtesy of CHRYSLER CORP.
