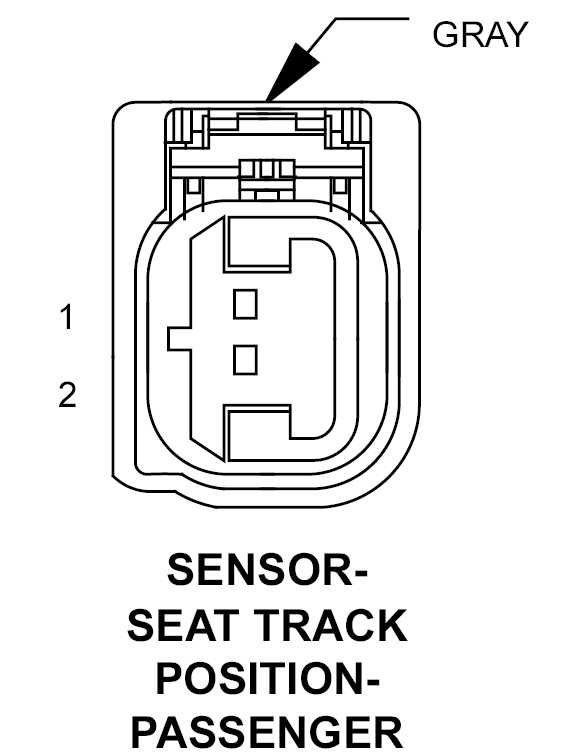

Passenger Seat Track Position Sensor Connector End View
SENSOR-SEAT TRACK POSITION-PASSENGER - GRAY 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R262 20WT/LB |
PASSENGER SEAT POSITION SENSOR DATA |
| 2 |
R264 20VT/LB |
PASSENGER SEAT POSITION SENSOR VOLTAGE |
