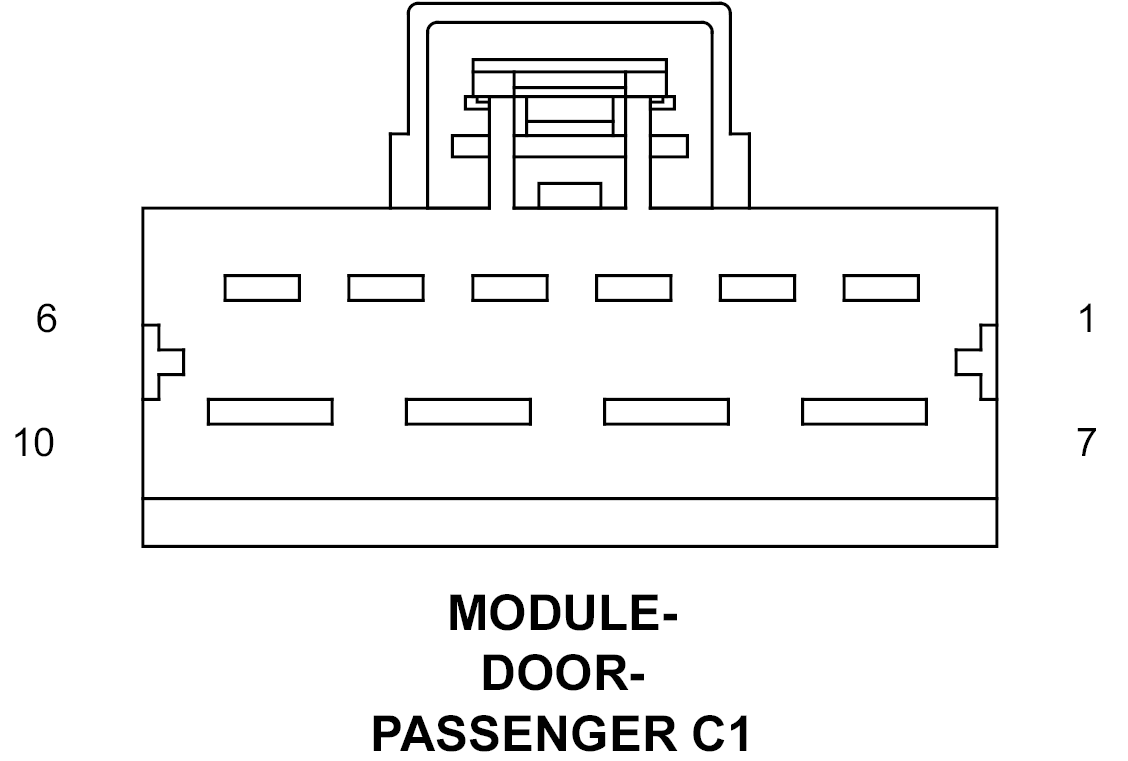

Passenger Door Module Connector End View (C1)
MODULE-DOOR-PASSENGER C1 - 10-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q302 20OR/LG | PASSENGER WINDOW HALL SENSOR A SIGNAL |
| 2 | Q990 20BK/LG | PASSENGER WINDOW HALL SENSOR RETURN |
| 3 | Q304 20LG/OR | PASSENGER WINDOW HALL SENSOR B SIGNAL |
| 4 | A931 20RD/WT | FUSED B(+) |
| 5 | C16 20DB/GY | PASSENGER MIRROR HEATER DRIVER (MEMORY) |
| 6 | C917 20DB/YL | PASSENGER MIRROR HEATER RETURN (MEMORY) |
| 7 | A929 16RD/DB | FUSED RUN/ACCESSORY DELAY RELAY OUTPUT |
| 8 | Z908 20BK | GROUND |
| 9 | Q322 16LG/OR | PASSENGER WINDOW EXPRESS DOWN DRIVER |
| 10 | Q312 16DB/OR | PASSENGER WINDOW EXPRESS UP DRIVER |
