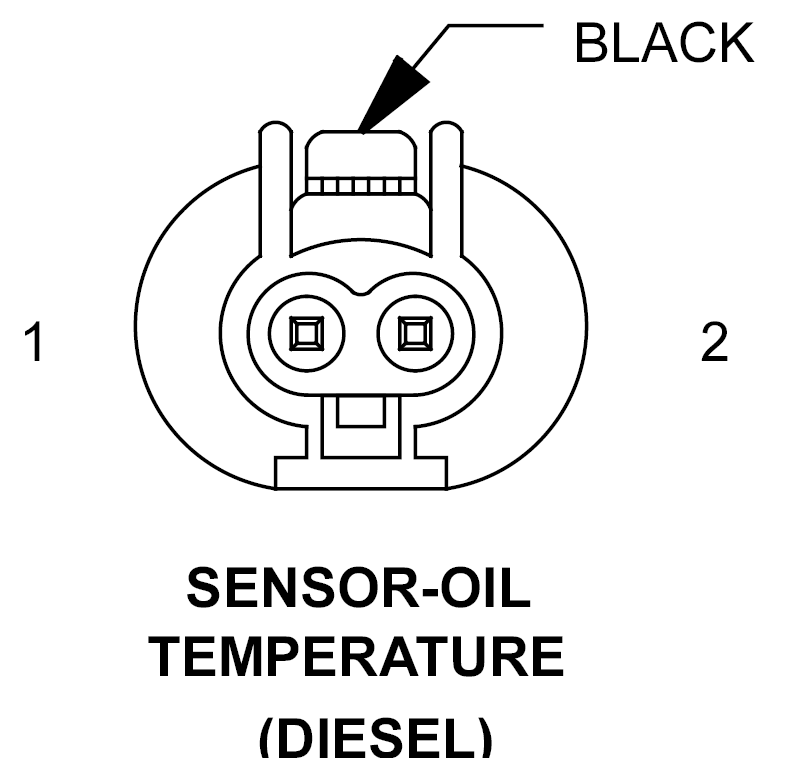

Oil Temperature Sensor (Diesel) Connector End View
SENSOR-OIL TEMPERATURE - BLACK 2-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z36 18YL/DG |
OIL TEMPERATURE SENSOR GROUND |
| 2 |
G224 20YL/GY |
OIL TEMPERATURE SENSOR SIGNAL |
