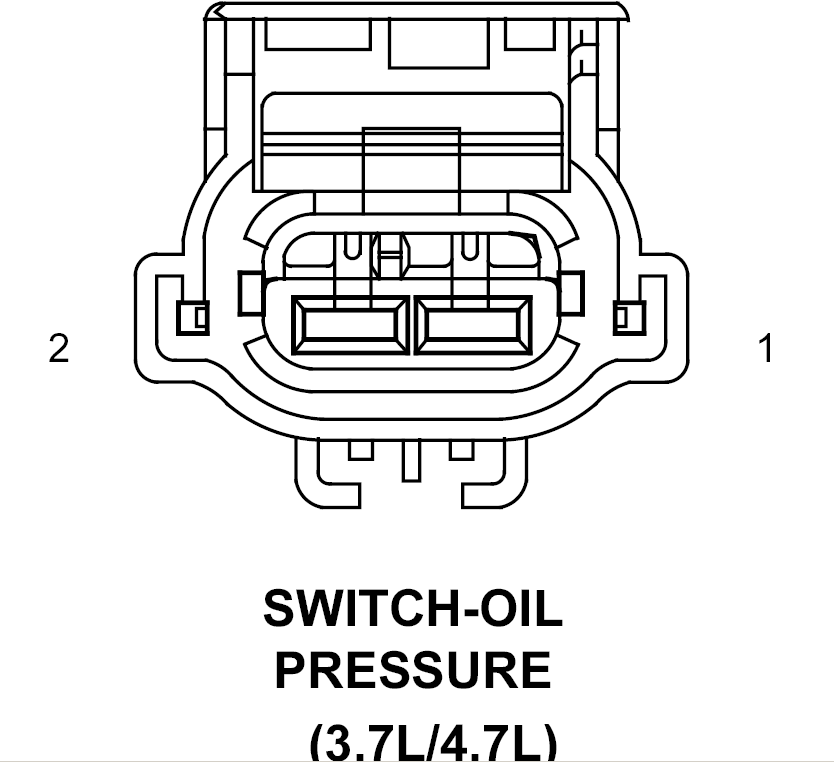

Oil Pressure Switch (3.7L/4.7L) Connector End View
SWITCH-OIL PRESSURE - 2-WAY(3.7L/4.7L)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G6 20VT/GY
ENGINE OIL PRESSURE SIGNAL
2
-
-
Courtesy of CHRYSLER CORP.
