Mode Door Second Row Actuator Connector End View

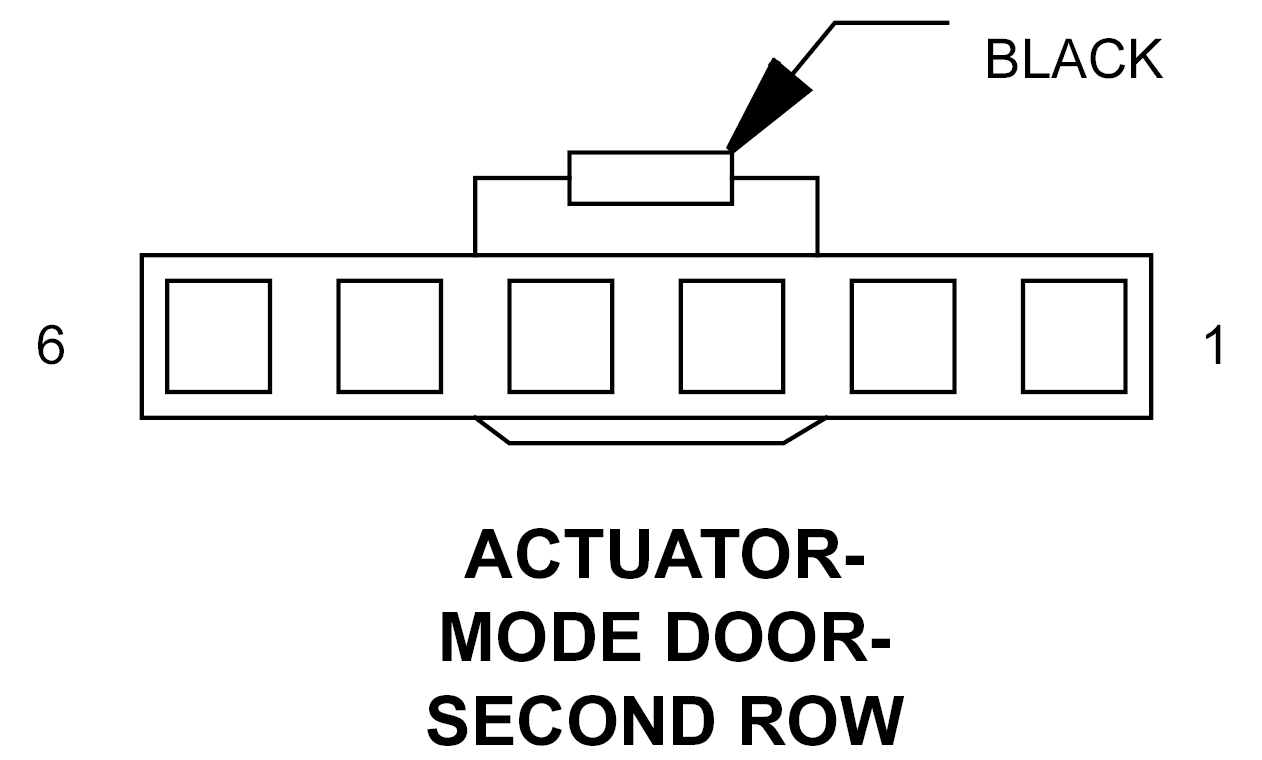

ACTUATOR-MODE DOOR-SECOND ROW - BLACK 6-WAY

GXK780006Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 - -
3 - -
4 - -
5 C139 20WT/BR SECOND ROW MODE DOOR DRIVER
6 C939 20BR/PK SECOND ROW MODE DOOR COMMON DRIVER
