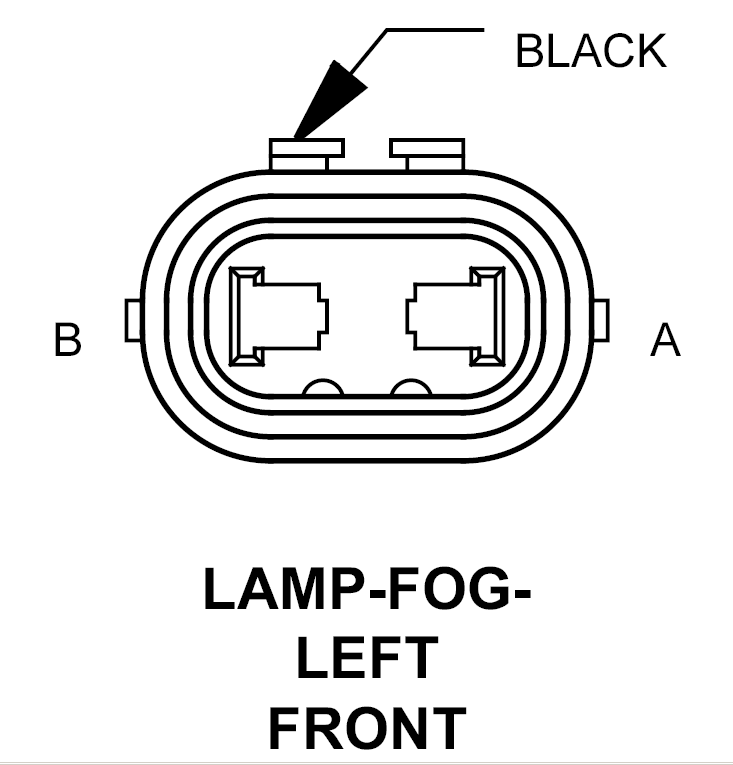

Left Front Fog Lamp Connector End View
LAMP-FOG-LEFT FRONT - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
L89 18WT/YL |
FRONT FOG LAMP RELAY OUTPUT |
| B |
Z910 18BK |
GROUND |
