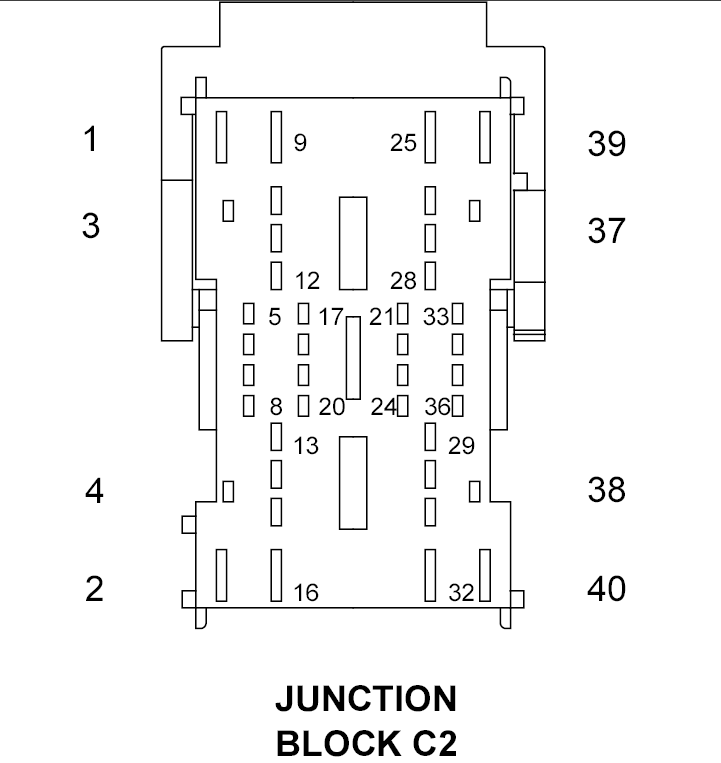

Junction Block Connector End View (C2)

JUNCTION BLOCK C2 - 40-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A405 14RD/DB	FUSED B(+)
2	A207 16RD/LG	FUSED POWER OUTLET RELAY OUTPUT
3	F941 20PK/LG	FUSED IGNITION SWITCH OUTPUT (RUN-START)
4	F921 20PK/YL	FUSED RUN RELAY OUTPUT
5	-	-
6	A931 20RD	FUSED B(+)
7	A931 20RD	FUSED B(+)
8	-	-
9	F944 16PK/LG	IGNITION SWITCH OUTPUT (RUN-START)
10	F941 20PK/LG	FUSED IGNITION SWITCH OUTPUT (RUN-START)
11	A935 20RD	FUSED B(+)
12	-	-
13	F921 20PK/YL	FUSED RUN RELAY OUTPUT
14	F921 20PK/YL	FUSED RUN RELAY OUTPUT
15	-	-
16	-	-
17	E2 20OR/BR	PANEL LAMPS DRIVER
18	E2 20OR/BR	PANEL LAMPS DRIVER
19	A931 20RD	FUSED B(+)
20	C115 20DB	DEFOGGER RELAY CONTROL
21	E2 20OR/BR	PANEL LAMPS DRIVER
22	E2 20OR/BR	PANEL LAMPS DRIVER
23	A108 20LG/RD	FUSED B(+)
24	-	-
25	A114 18GY/RD	FUSED B(+)
26	P1 20TN/LG	DRIVER DOOR UNLOCK RELAY CONTROL
27	P777 20LG/DG	DOOR LOCK RELAY CONTROL
28	E2 20OR/BR	PANEL LAMPS DRIVER
29	E2 20OR/BR	PANEL LAMPS DRIVER
30	F103 20PK/GY	IGNITION RUN/ACC RELAY CONTROL
31	F102 20PK/DB	IGNITION RUN RELAY CONTROL
32	A118 16RD/OR	FUSED B(+)
33	P292 20VT/LG	PASSENGER DOORS UNLOCK RELAY CONTROL
34	Q82 20LG/OR	FLIP-UP GLASS RELAY CONTROL
35	-	-
36	-	-
37	-	-
38	F943 20PK/LG	FUSED IGNITION SWITCH OUTPUT (RUN-START)
39	-	-
40	A118 16RD/OR	FUSED B(+)
