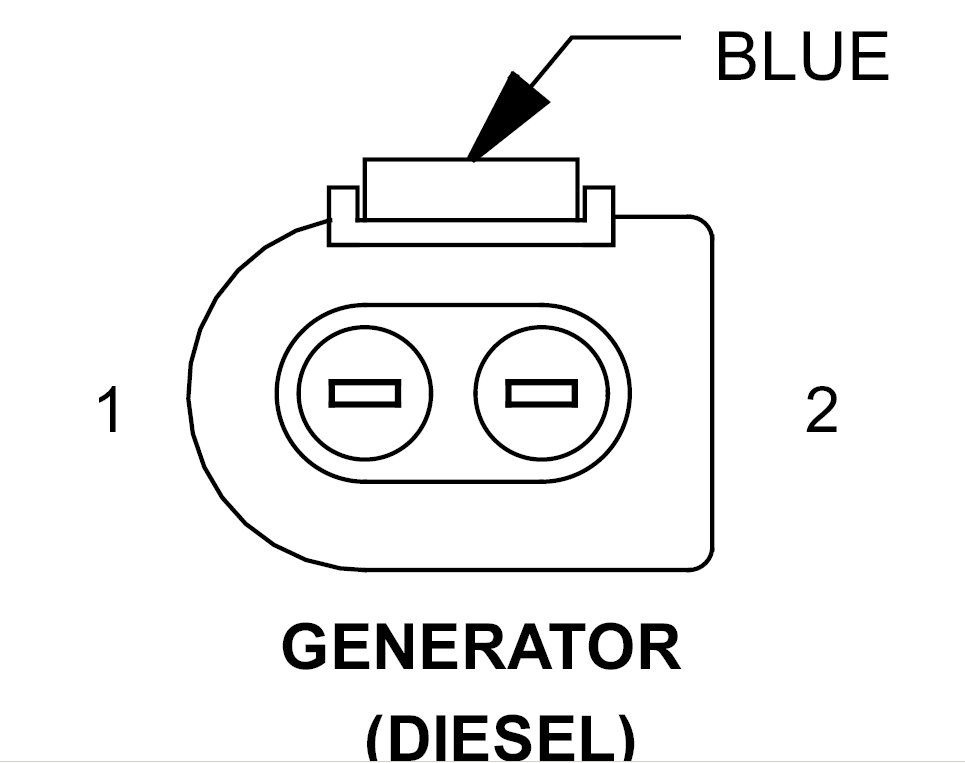

Generator (Diesel) Connector End View
GENERATOR - BLUE 2-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
D509 20WT/BL |
LIN BUS |
| 2 |
A923 10RD |
FUSED B(+) |
