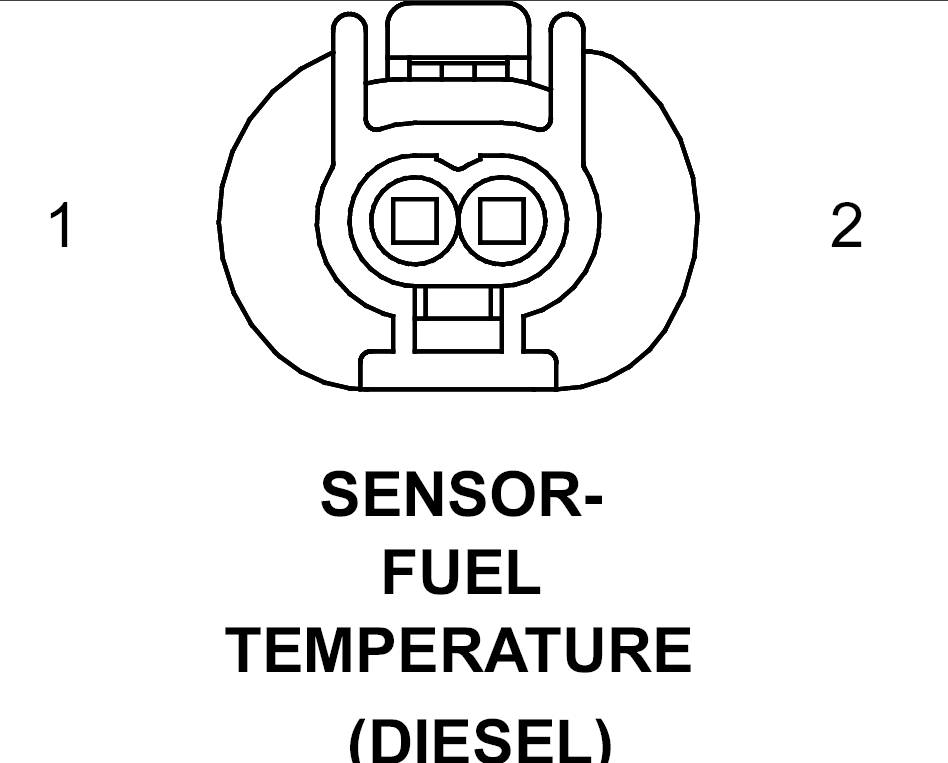

Fuel Temperature Sensor (Diesel) Connector End View
SENSOR-FUEL TEMPERATURE - 2-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K914 20BL/DG |
FUEL TEMPERATURE SENSOR GROUND |
| 2 |
K156 20BL/RD |
FUEL TEMPERATURE SENSOR SIGNAL |
