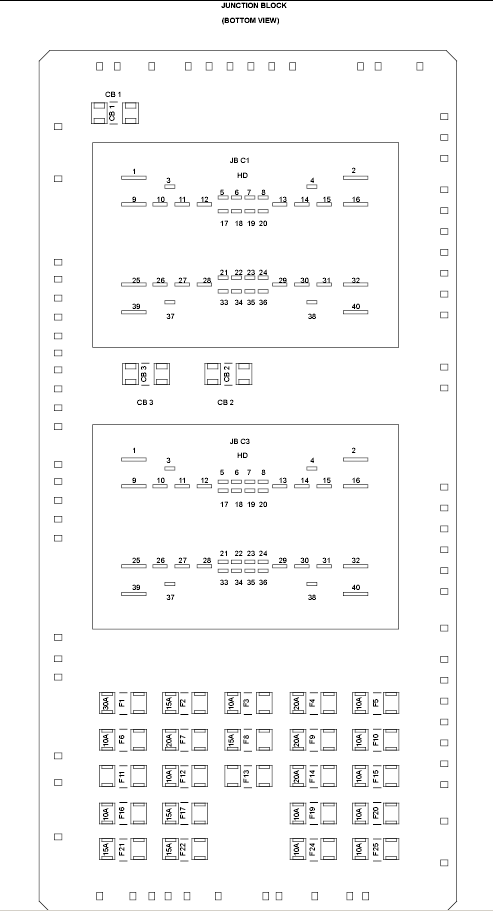

Circuit Breaker 2 Connector End View
CIRCUIT BREAKER NO. 2 - 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A906 |
FUSED B(+) |
| 2 |
A33 |
FUSED B(+) |
