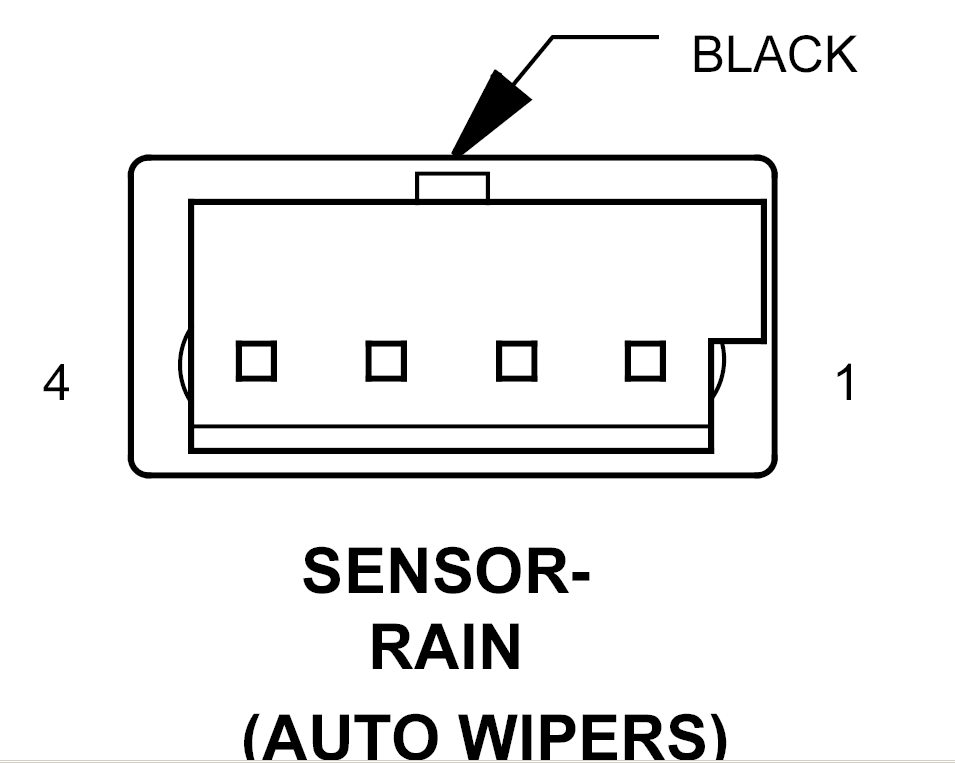

Auto Wipers Rain Auto Wipers Sensor Connector End View
SENSOR-RAIN - BLACK 4-WAY(AUTO WIPERS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A934 20RD/OR |
FUSED RUN/ACCESSORY DELAY RELAY OUTPUT |
| 2 |
Z915 20BK |
GROUND |
| 3 |
D55 20WT/OR |
CAN B BUS (+) |
| 4 |
D54 20WT |
CAN B BUS (-) |
