Flex Plate
WARNING: This page is about a different variant/trim than selected.
Courtesy of CHRYSLER LLC

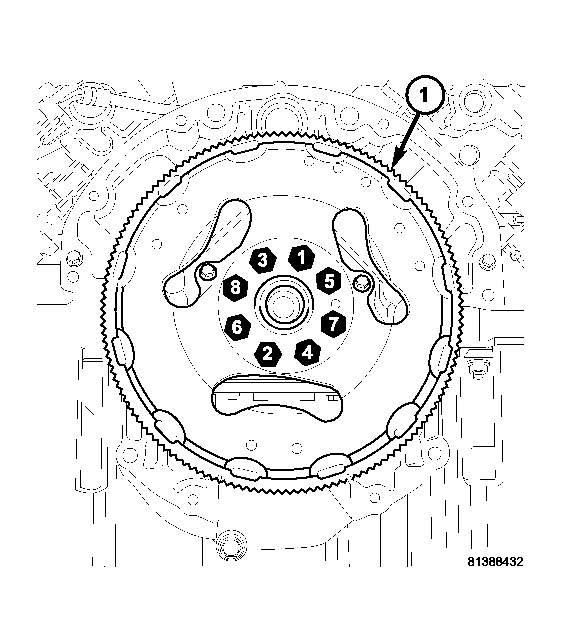

- Position the flexplate or flywheel onto the crankshaft and install the bolts hand tight.
- For automatic transmissions:
Tighten the flexplate retaining bolts to 95 N.m (70 ft. lbs.).
- Install the transmission.
