Structural Cover

WARNING: This page is about a different variant/trim than selected.

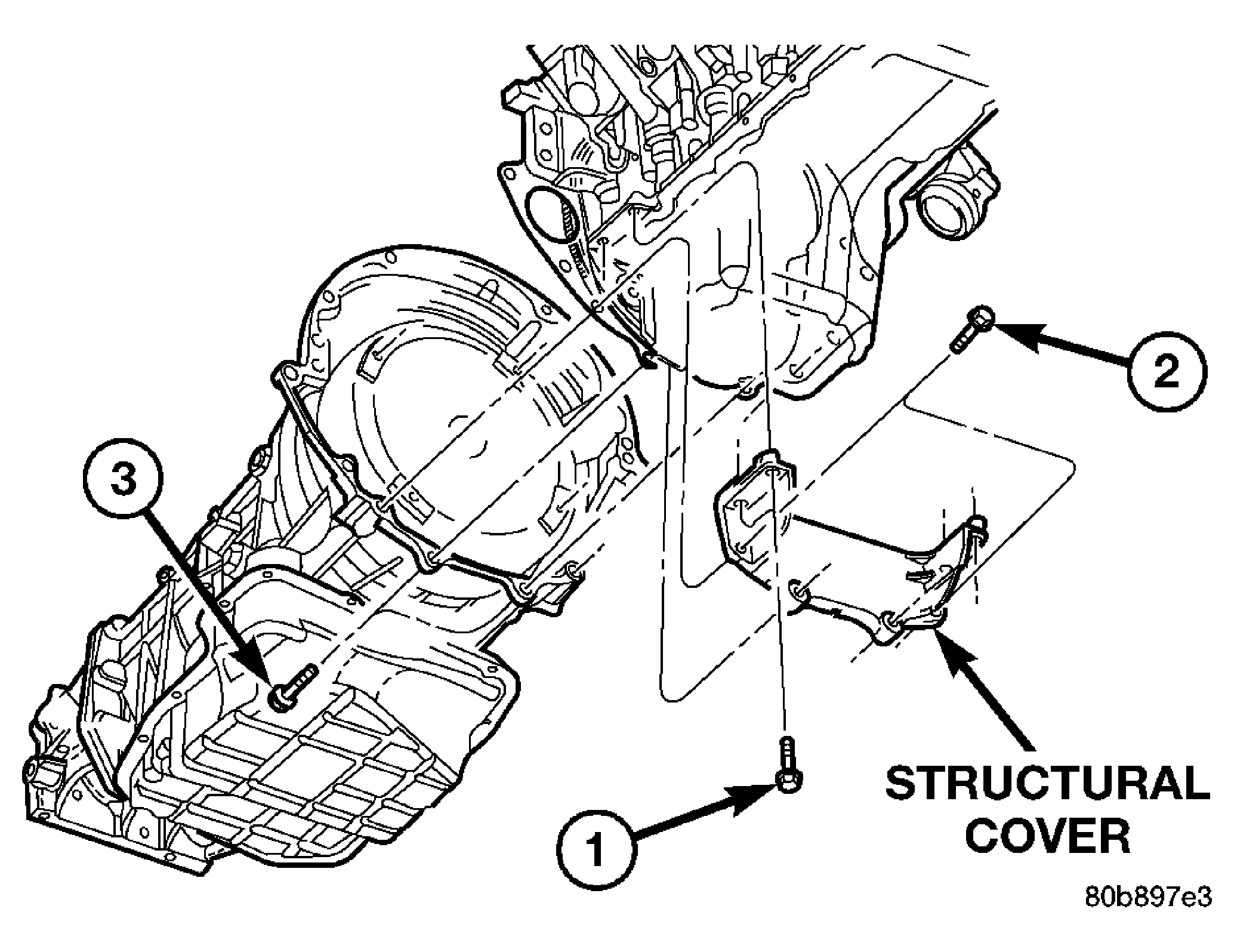

Fig 1: Structural Cover

Courtesy of CHRYSLER LLC

Raise vehicle on hoist.
Remove the left hand exhaust pipe from exhaust manifold.
Loosen the right hand exhaust manifold-to-exhaust pipe retaining bolts.
Remove the eight bolts (1, 2, and 3) retaining structural cover in the sequence shown in illustration.
Pivot the exhaust pipe downward and remove the structural cover.
