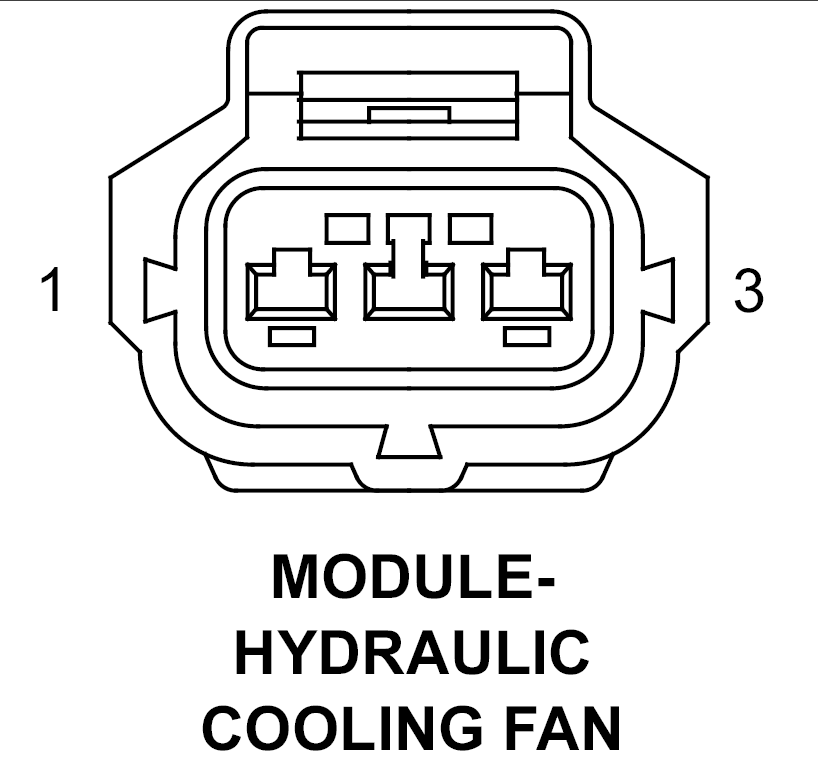

Hydraulic Cooling Fan Module Connector End View
MODULE-HYDRAULIC COOLING FAN - 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A916 16RD |
FUSED B(+) (5.7L) |
| 1 |
A916 16RD/GY |
FUSED B(+) (EXCEPT 5.7L) |
| 2 |
K173 20BR/VT |
HYDRAULIC RADIATOR FAN SOLENOID CONTROL |
| 3 |
Z823 20BK/DG |
GROUND |
