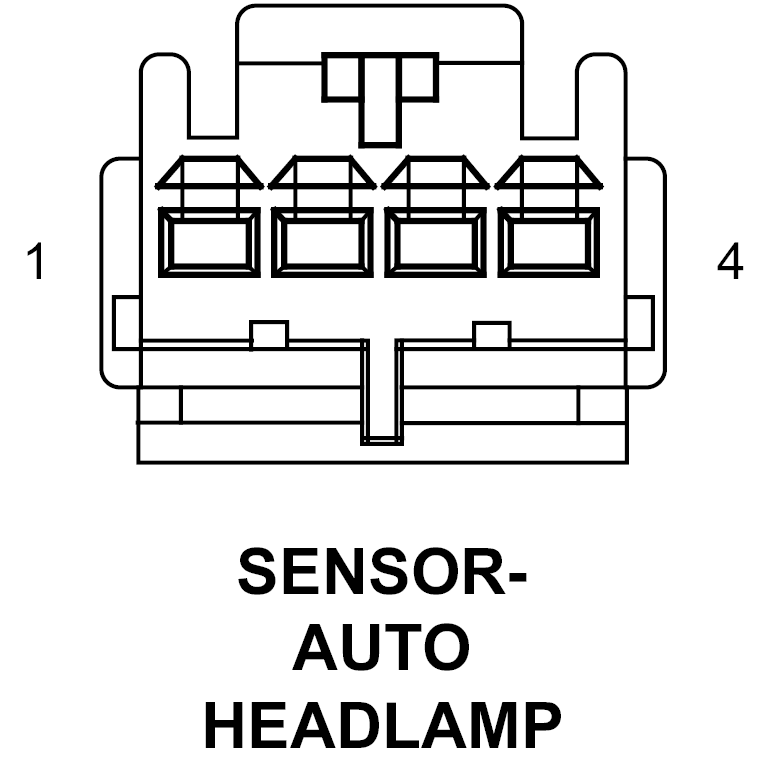

Automatic Headlamp Sensor Connector End View
SENSOR-AUTO HEADLAMP - 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
L924 20WT/TN |
AUTO HEADLAMPS SIGNAL RETURN |
| 3 |
L24 20WT/VT |
AUTO HEADLAMPS SIGNAL |
| 4 |
- |
- |
