Idle Air Control Motor (4.7L) Connector End View

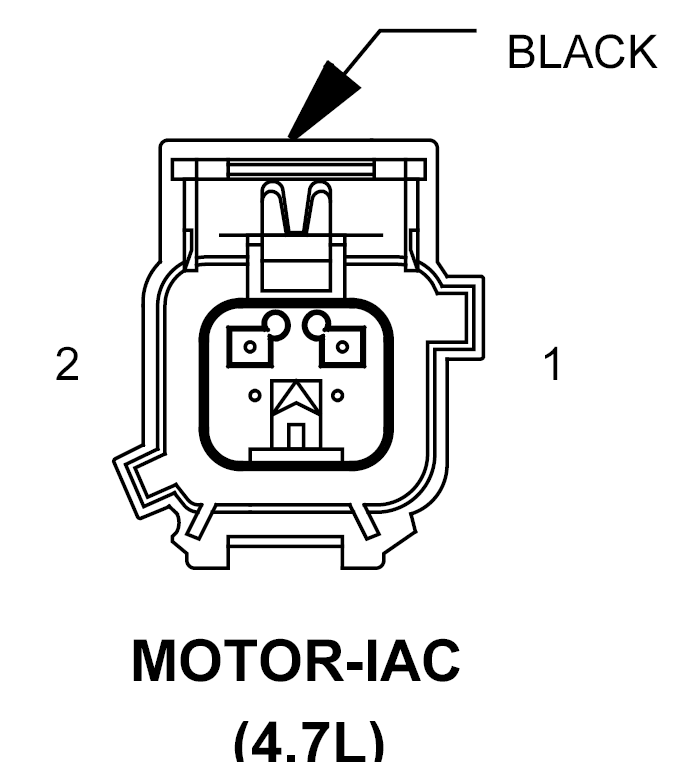

MOTOR-IAC - BLACK 2-WAY(4.7L)

GXK780277Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K961 20BR/GY IAC SIGNAL
2 K61 18VT/GY IAC CONTROL
