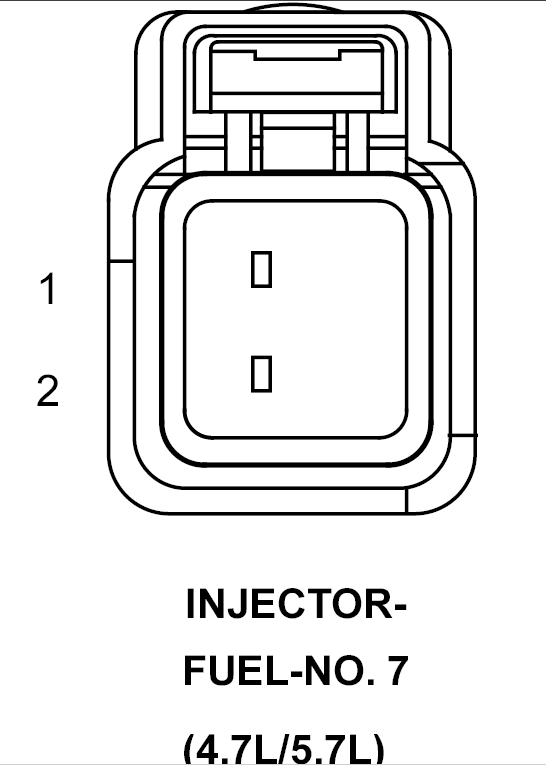

Fuel Injector 7 (4.7L/5.7L) Connector End View
INJECTOR-FUEL-NO. 7 - 2-WAY(4.7L/5.7L)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K26 16BR/YL |
INJECTOR CONTROL NO. 7 |
| 2 |
F42 16DG/LG |
FUSED ASD RELAY OUTPUT |
