Engine Block: FLEXPLATE: Installation: FLEXPLATE

WARNING: This page is about a different variant/trim than selected.

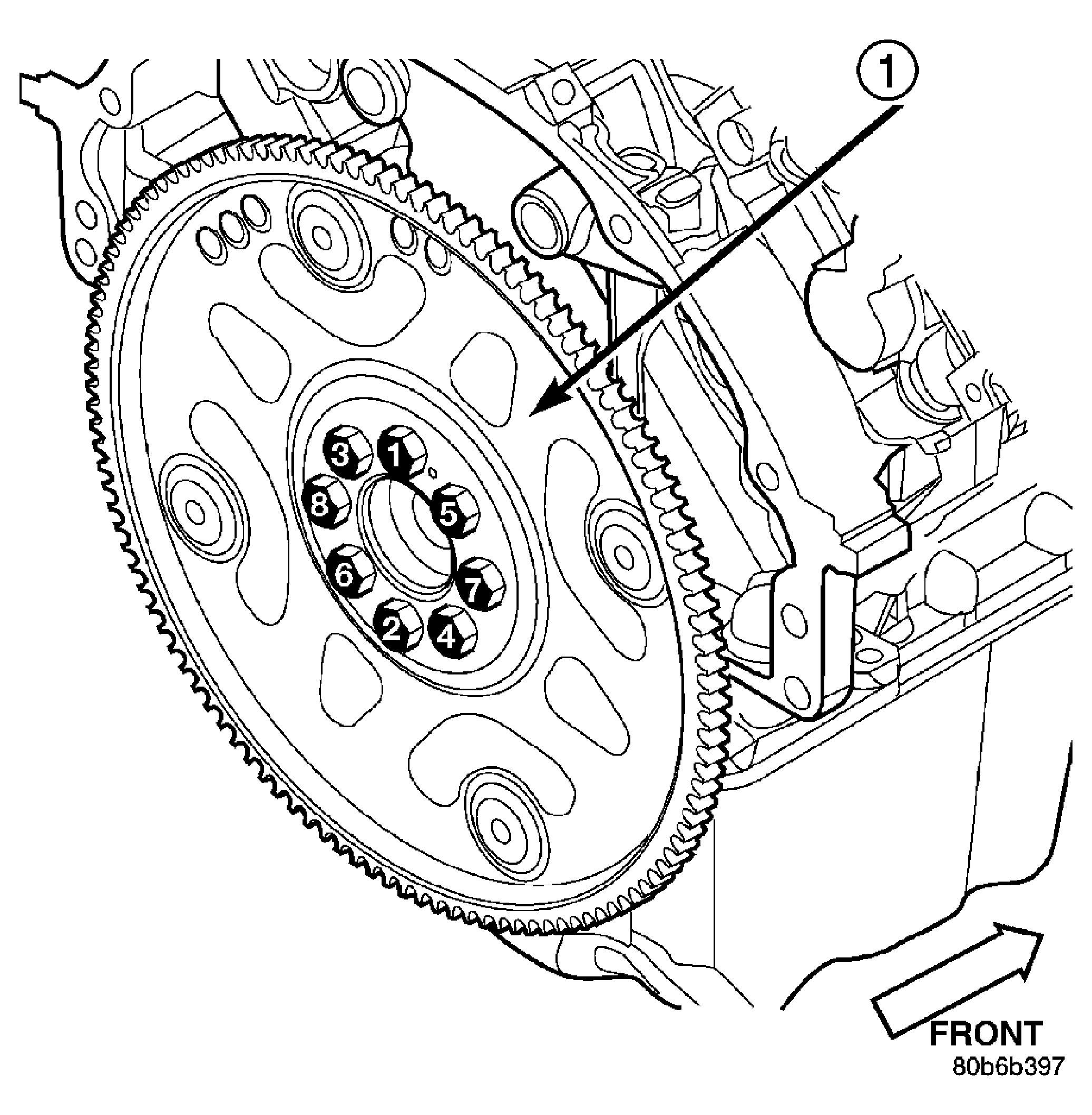

Fig 1: Flexplate Bolt Loosening/Tightening Sequence
GC0011786Courtesy of CHRYSLER LLC
1 - FLEXPLATE
  1. Position the flexplate onto the crankshaft and install the bolts hand tight.
  2. Tighten the flexplate retaining bolts to 95 N.m (70 ft. lbs.) in the sequence shown in illustration. See Fig 1.
  3. Install the transmission. For NAG1, refer to INSTALLATION or for 545RFE, refer to INSTALLATION .
