Inline Connector End View (C309 )

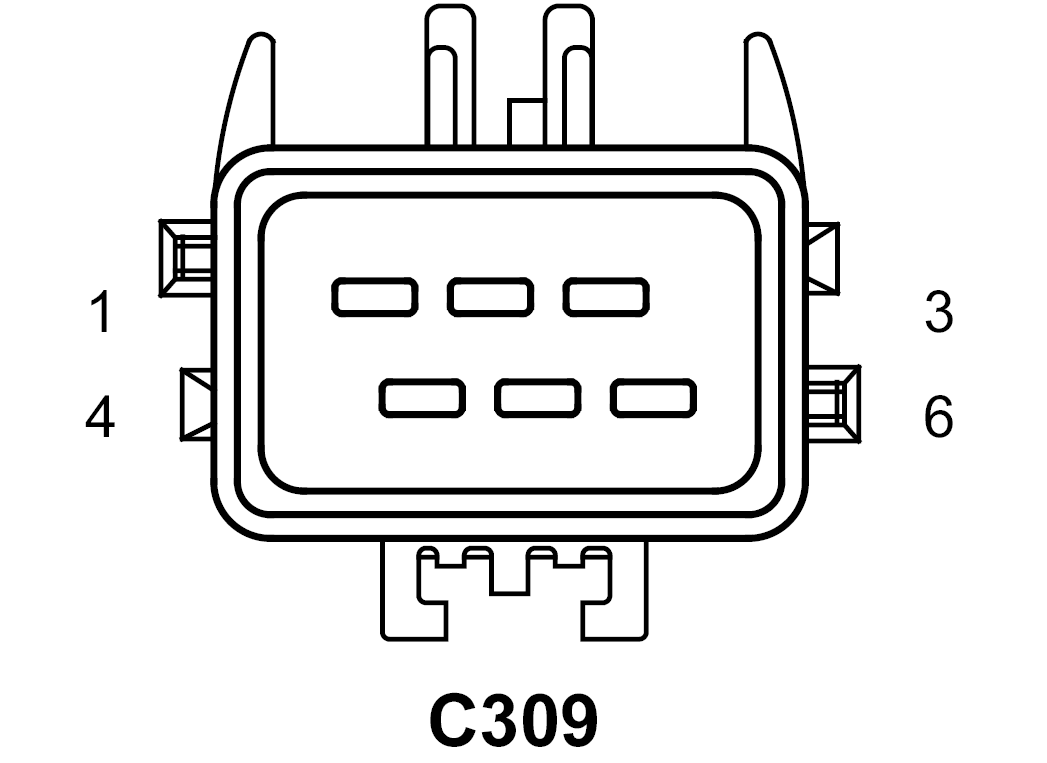

C309 - 6-WAYFEMALE

GXK780061Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 - -
3 - -
4 X777 20LG/GY PARK ASSIST DISPLAY SUPPLY (PARK ASSIST)
5 D777 20WT/GY REAR PARK ASSIST DISPLAY SIGNAL (PARK ASSIST)
6 Z171 20GY/BK GROUND (PARK ASSIST)

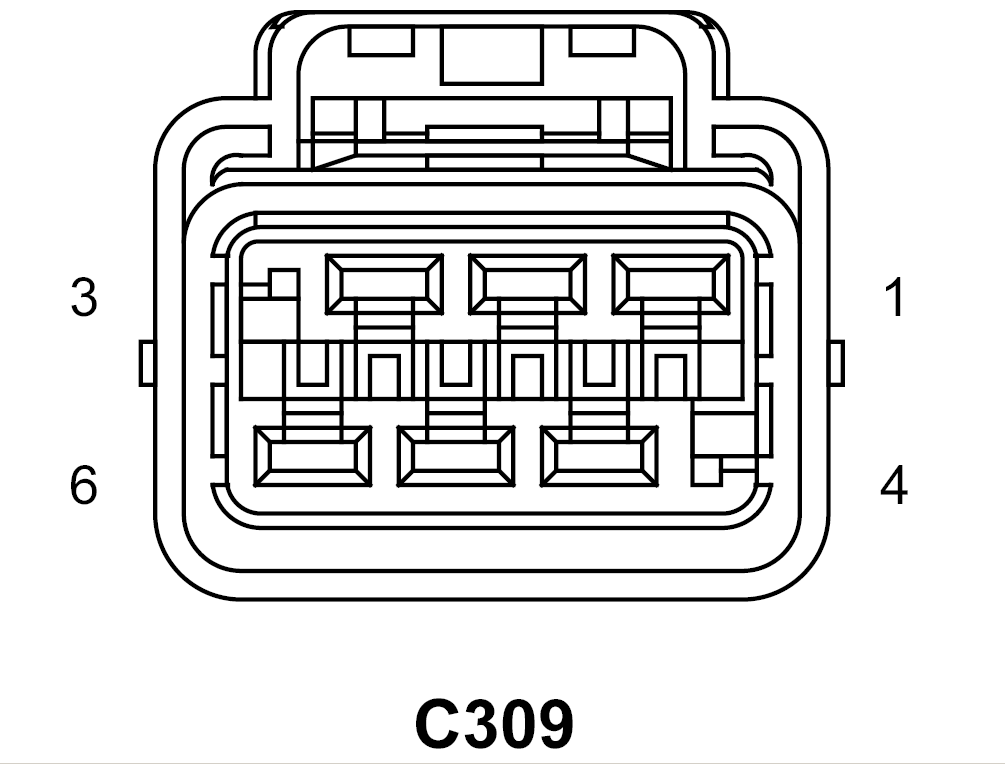

C309 - 6-WAYMALE

GXK780062Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 - -
3 - -
4 X777 20LG/GY PARK ASSIST DISPLAY SUPPLY (PARK ASSIST)
5 D777 20WT/GY REAR PARK ASSIST DISPLAY SIGNAL (PARK ASSIST)
6 Z171 20GY/BK GROUND (PARK ASSIST)
