Rear Driver Seat Adjuster Vertical Motor Connector End View

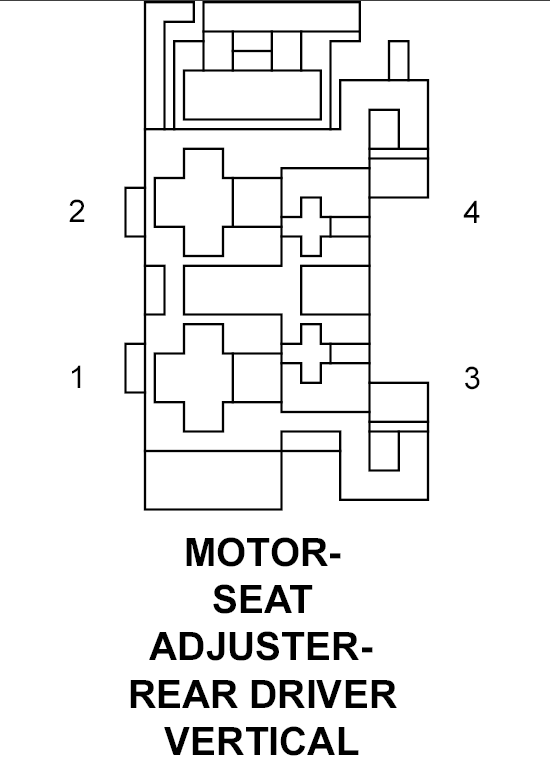

MOTOR-SEAT ADJUSTER-REAR DRIVER VERTICAL - 4-WAY

GXK780285Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 P13 16LG/OR DRIVER SEAT REAR RISER DOWN DRIVER (EXCEPT MEMORY)
1 P113 16LG/WT DRIVER SEAT REAR VERTICAL DOWN DRIVER (MEMORY)
2 P11 16LG/YL DRIVER SEAT REAR RISER UP DRIVER (EXCEPT MEMORY)
2 P111 16LG/YL DRIVER SEAT REAR VERTICAL UP DRIVER (MEMORY)
3 G492 20LB/VT DRIVER SEAT REAR VERTICAL SENSOR GROUND (MEMORY)
4 G402 20VT/DB DRIVER SEAT REAR VERTICAL POSITION SENSE (MEMORY)
