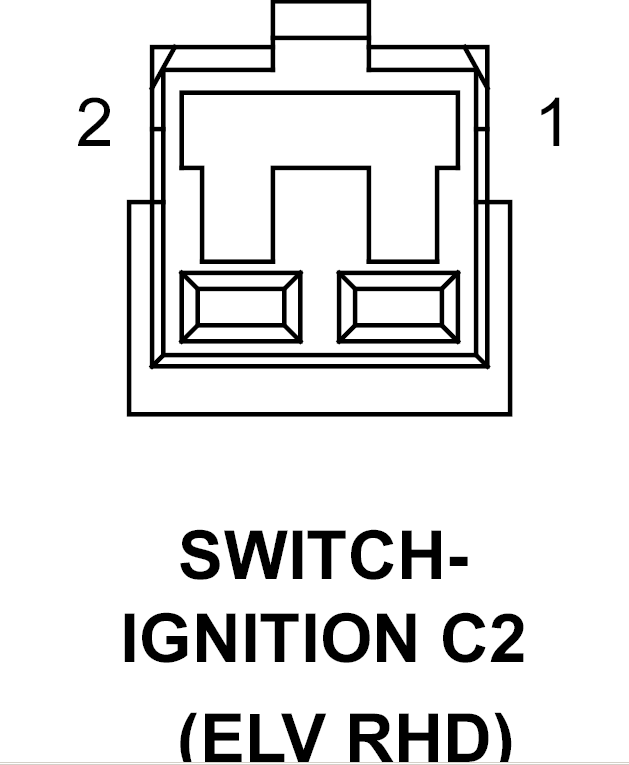

Ignition Switch (ELV RHD) Connector End View (C2)
SWITCH-IGNITION C2 - 2-WAY(ELV RHD)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A306 20RD/VT |
IGNITION SWITCH FEED |
| 2 |
A935 20RD |
FUSED B(+) |
