Front






FRONT

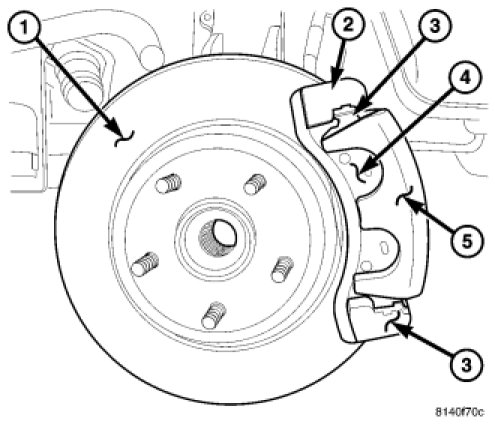

1. Install the rotor (1) on hub studs.

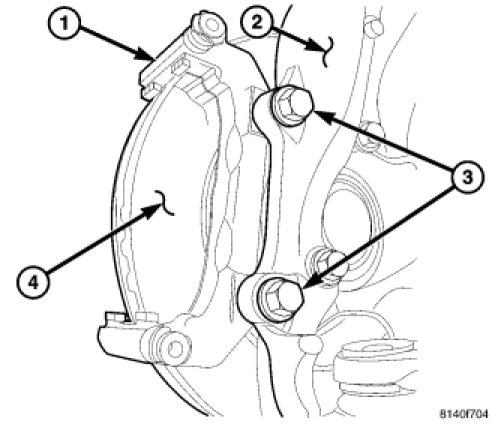

2. Install the caliper adapter (1) on the knuckle (2). Install adapter bolts (3) and tighten to 169 Nm (125 ft. lbs.).





NOTE: Caliper slide pins should be free from debris and lightly lubricated.

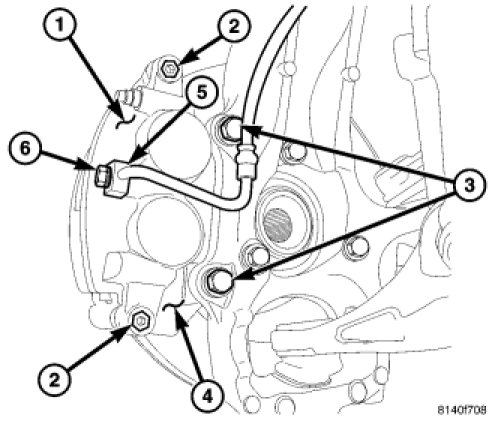

3. Install the caliper (1) to the caliper adapter (4) and tighten the bolts to 44 Nm (32 ft. lbs.).
4. Gently lift one end of the slide pin boot to equalize air pressure, then release the boot and verify that the boot is fully covering the slide pin.
5. Install wheel and tire assembly.
6. Remove support and lower the vehicle.
7. Pump brake pedal to seat caliper pistons and brake pads. Do not move vehicle until firm brake pedal is obtained.
